Study 05 / Precision molding

Smartwatch midframe mold design

The side button and display gasket constrain the smartwatch midframe. The molding review connects those interfaces to wall thickness, filling behavior, air traps and predicted distortion.

Owen Wen · Past engineering project · Anonymized

Cutaway smartwatch showing the midframe beneath the display

Project overview23 drawings

Drawing index

What needed attention before tooling?

The midframe simulation identified localized shrinkage, a small pressure imbalance and a possible air trap on a visible surface. The review judged these risks manageable and identified no defect that would block tooling.

See drawings Volumetric shrinkage and sink estimates · Air trap locations

Drawing series 01

Product Specifications

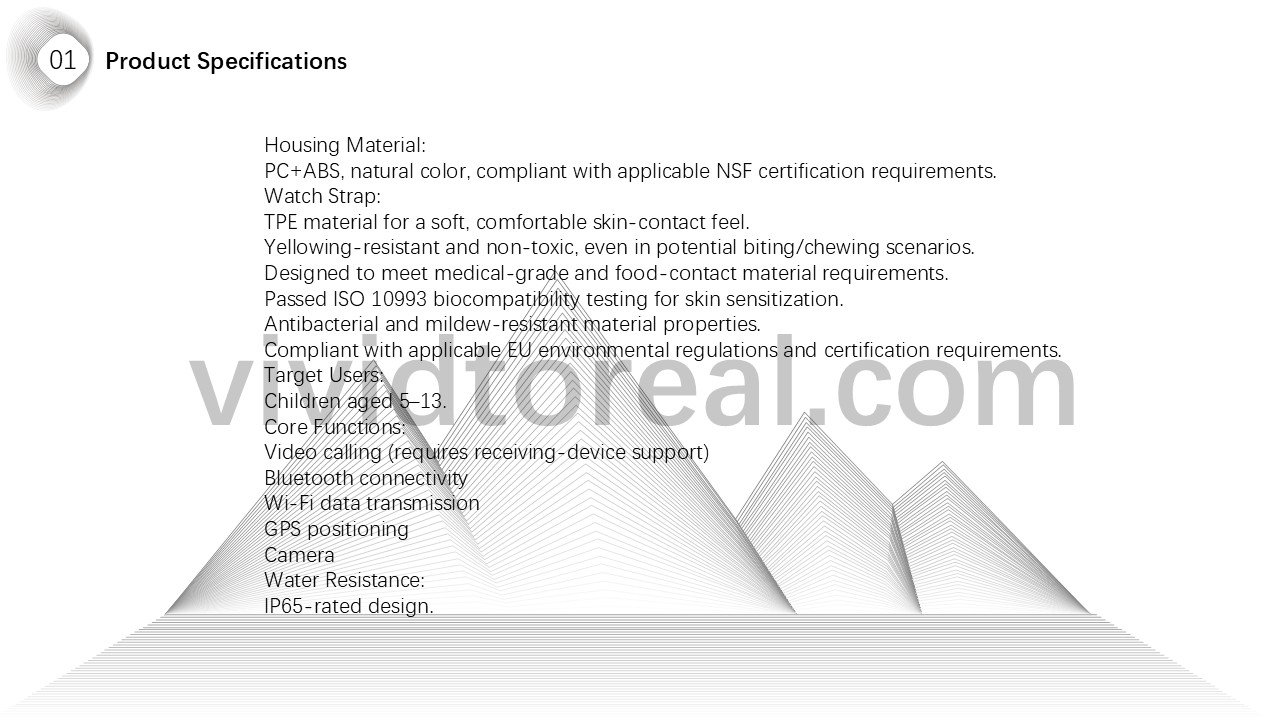

Smartwatch — Midframe product specifications — Midframe product specifications

Drawing series 02

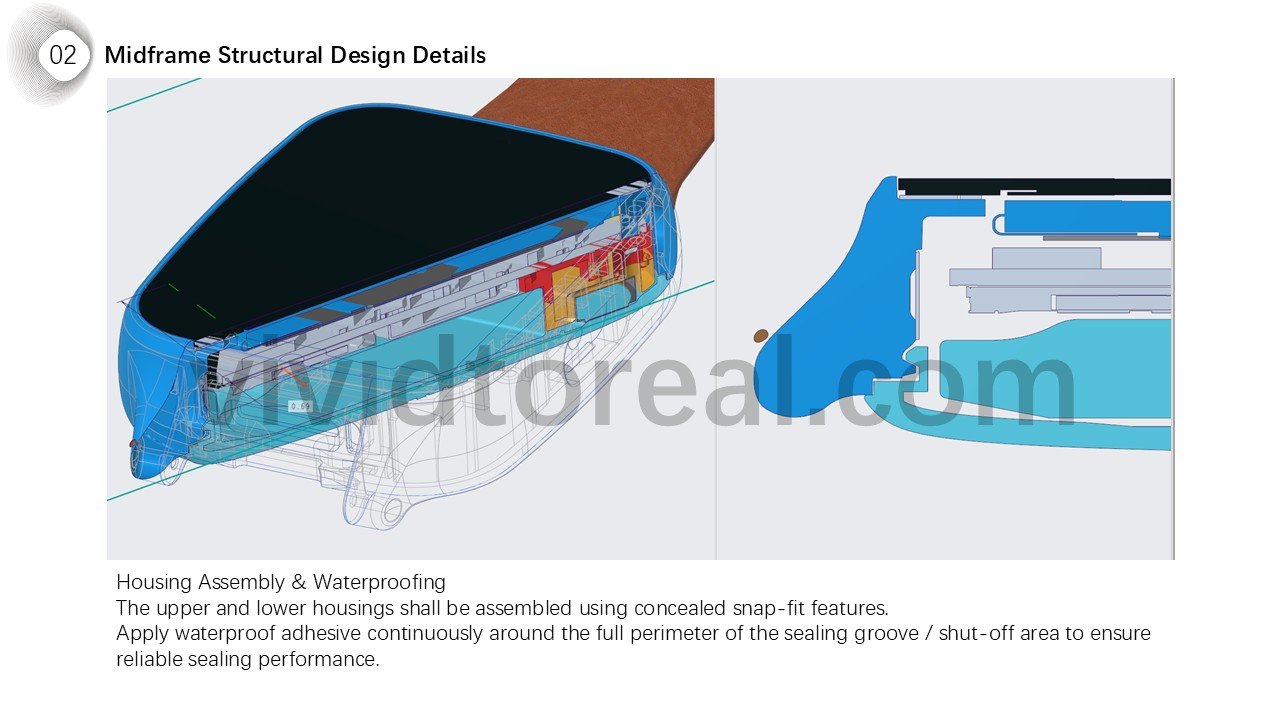

Midframe Structural Design Details

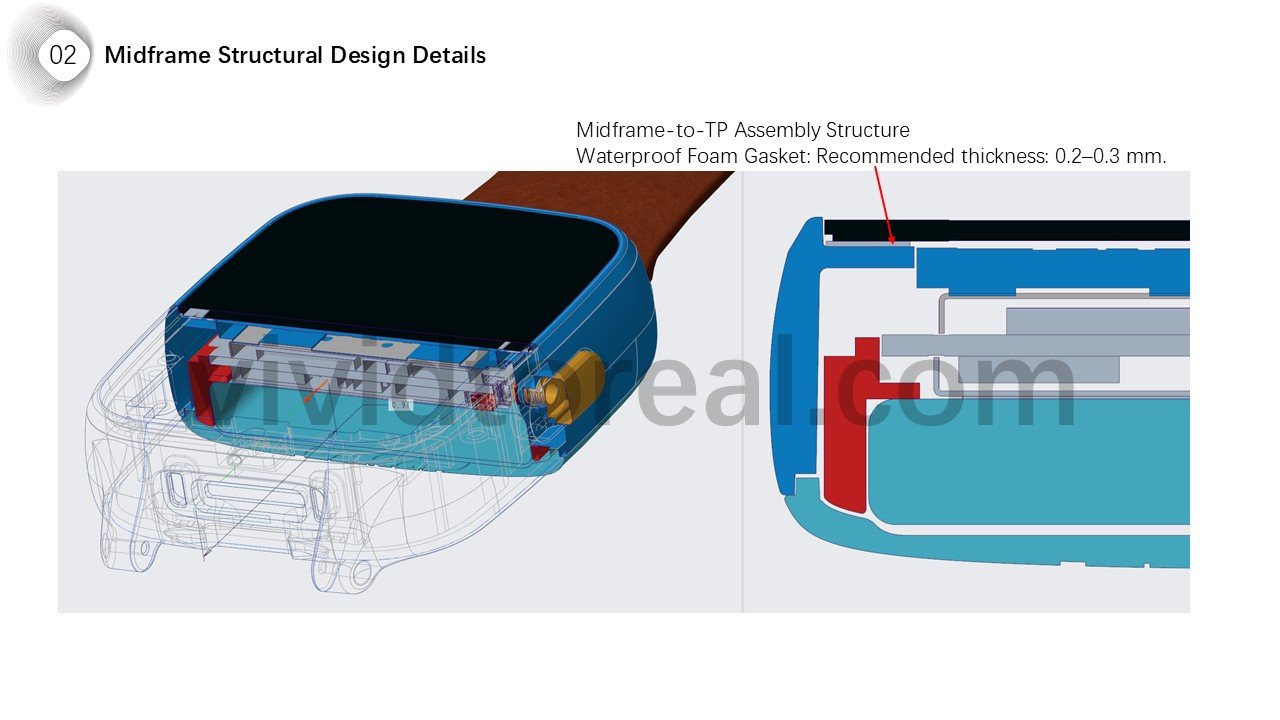

Smartwatch — Touch panel gasket cross-section — Touch panel gasket cross-section

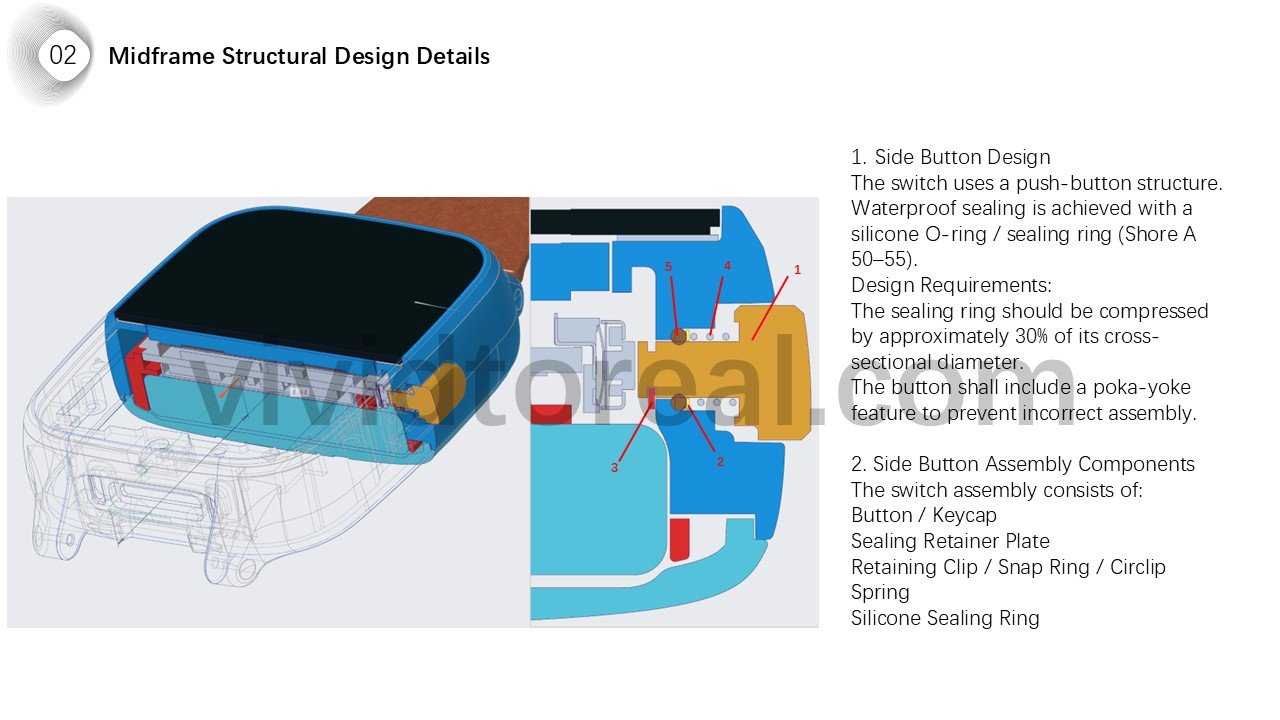

Smartwatch — Side button cross-section — Side button cross-section

Smartwatch — Display and frame interface — Display and frame interface

Drawing series 03

Injection molding simulation

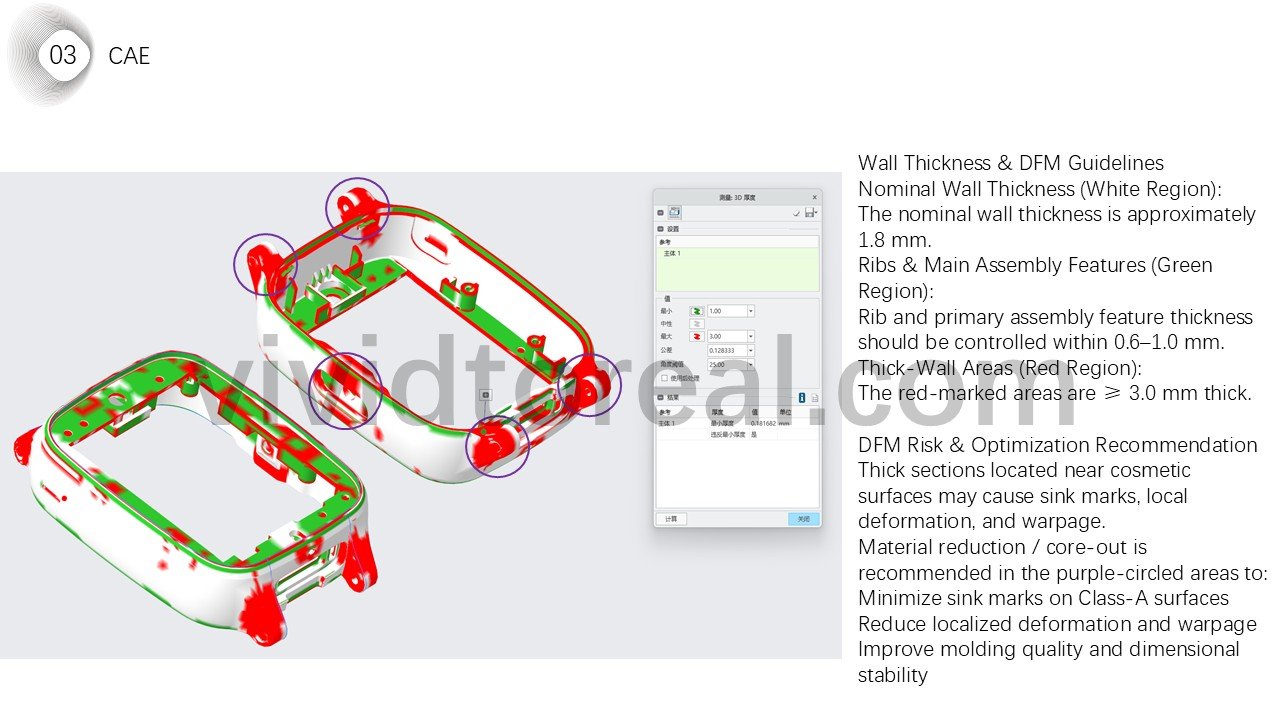

Smartwatch — Midframe wall thickness review — Midframe wall thickness review

Smartwatch — Local midframe tooling features — Local midframe tooling features

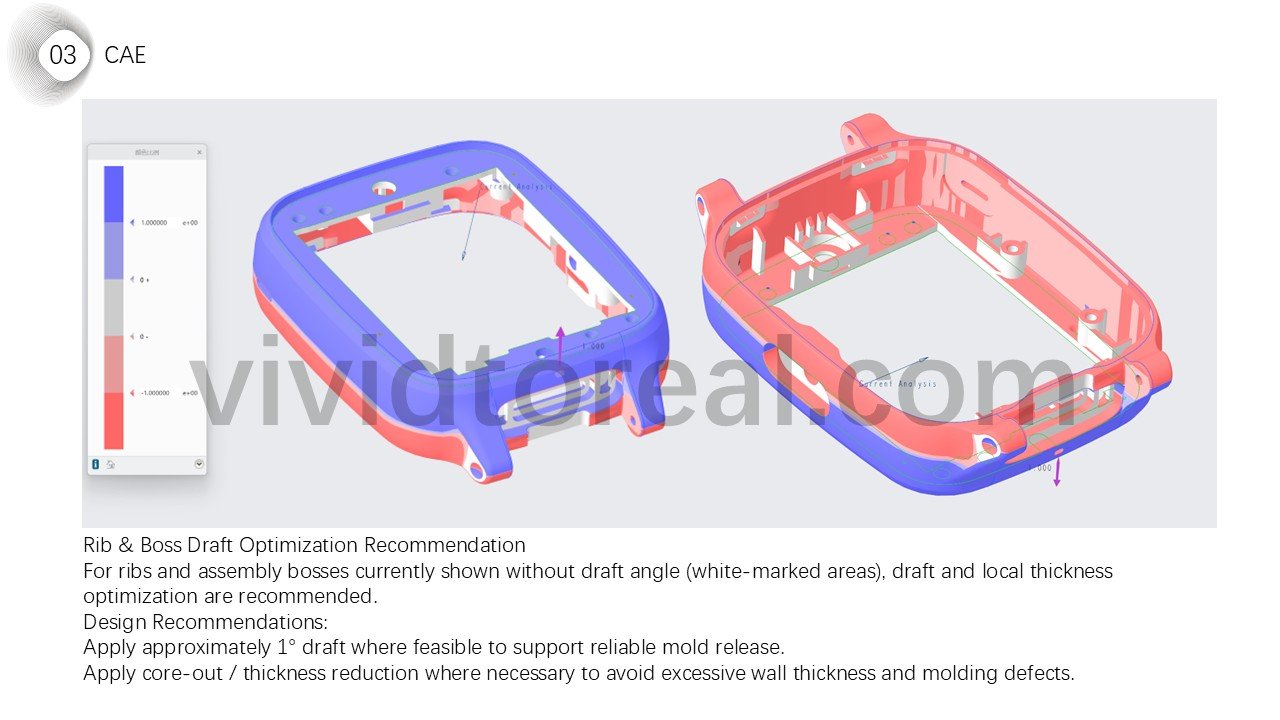

Smartwatch — Core and cavity surface analysis — Core and cavity surface analysis

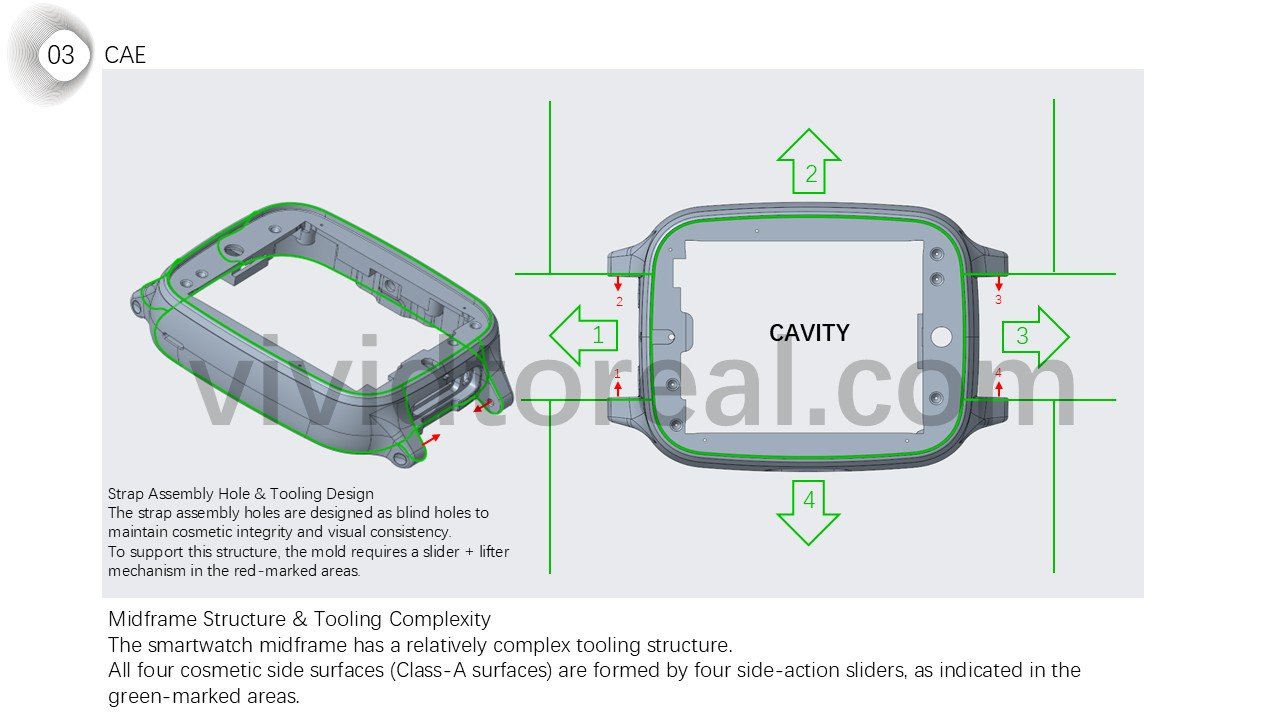

Smartwatch — Midframe mold opening directions — Midframe mold opening directions

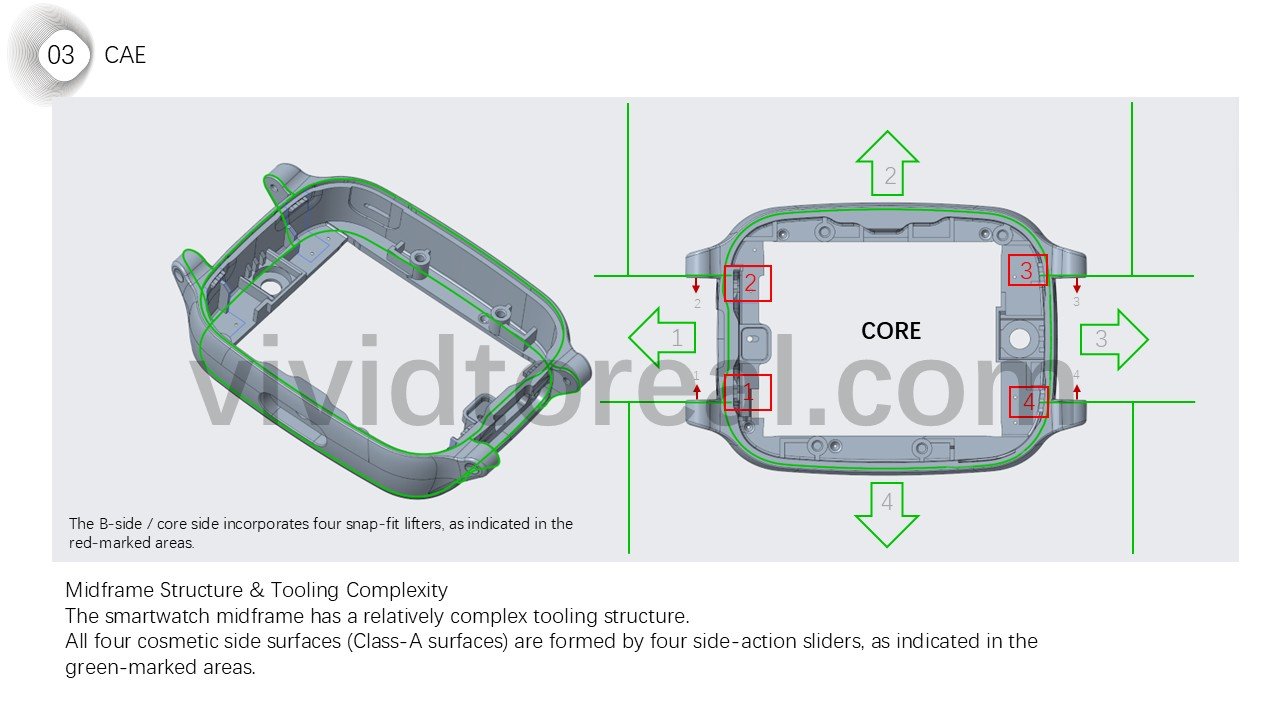

Smartwatch — Core-side tooling directions — Core-side tooling directions

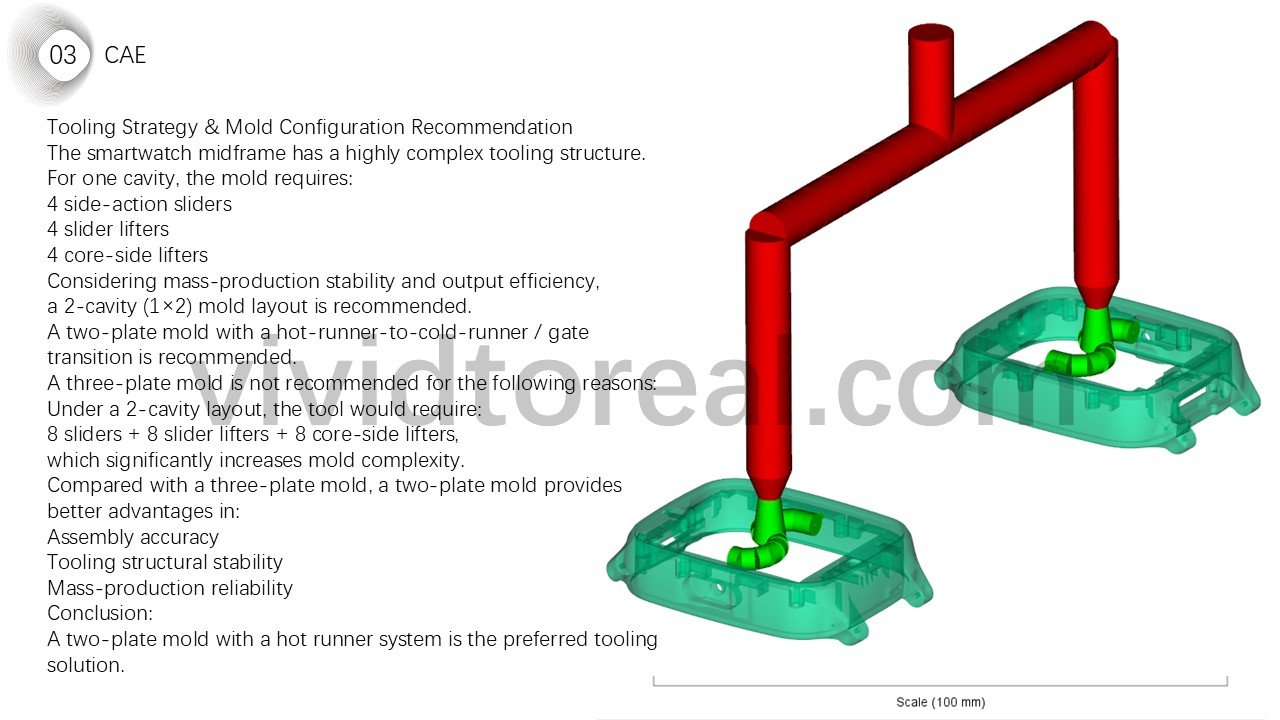

Smartwatch — Two-part runner layout — Two-part runner layout

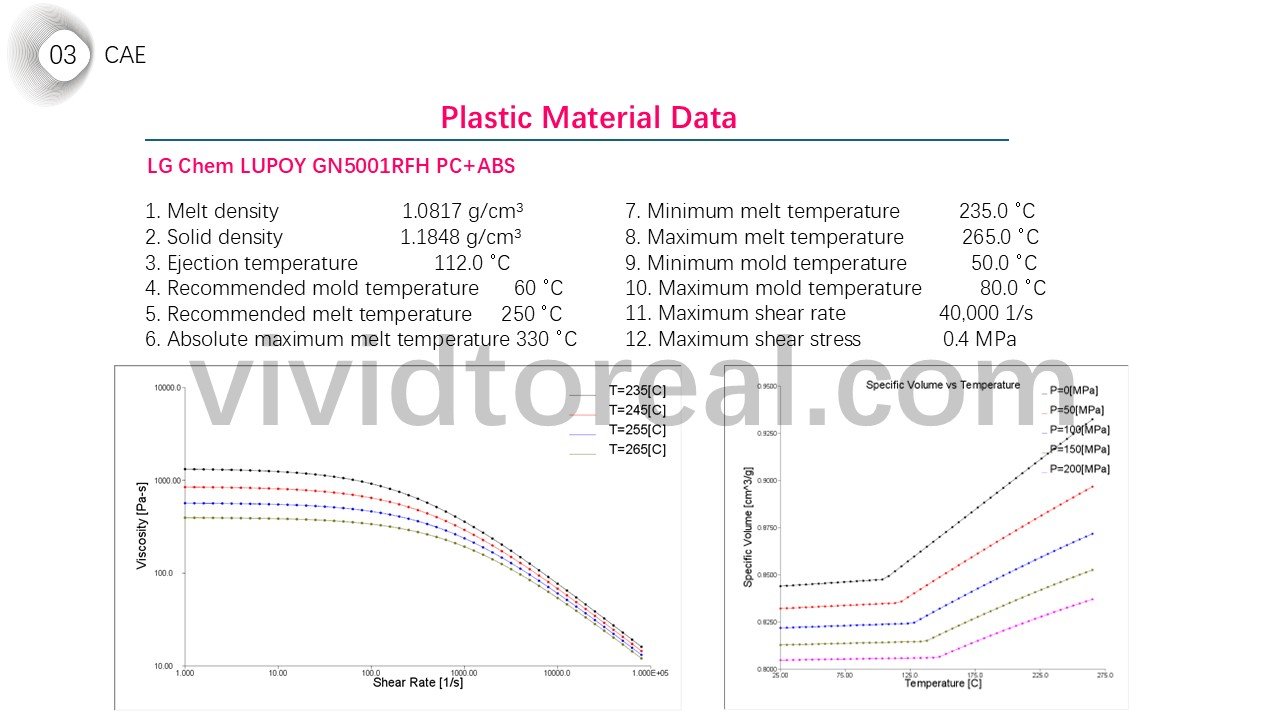

Smartwatch — PC and ABS blend material properties — PC and ABS blend material properties

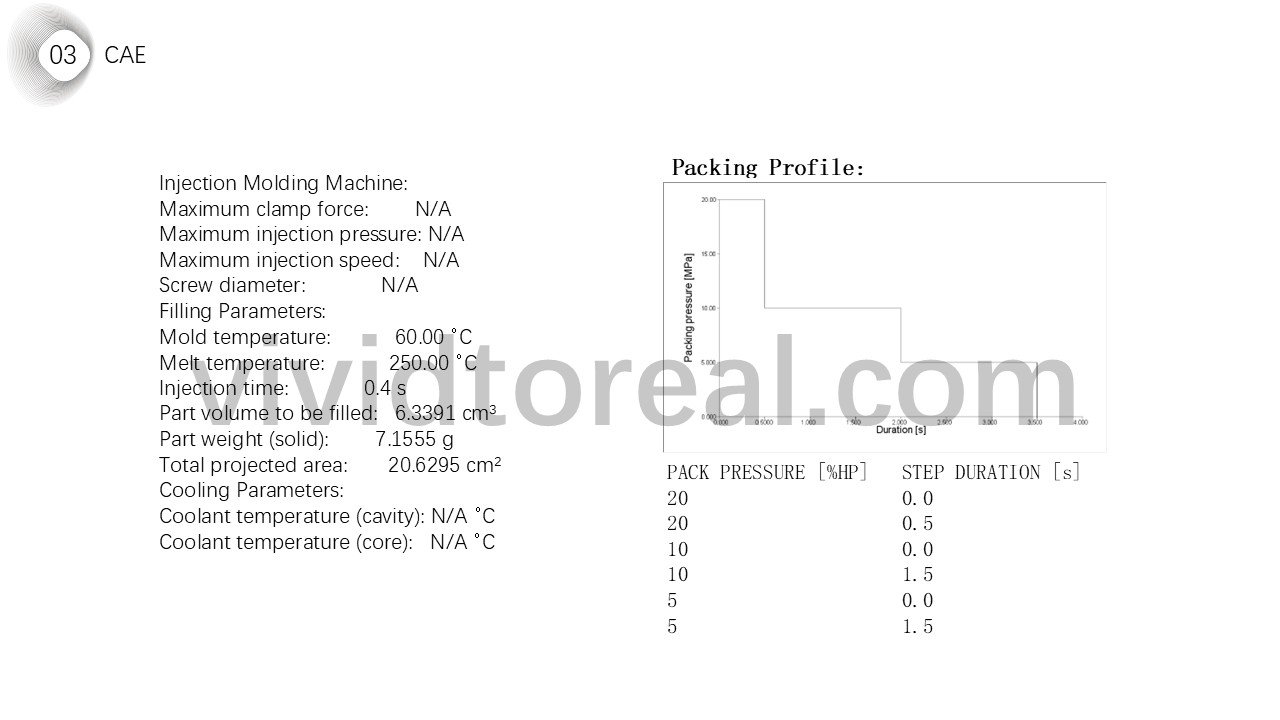

Smartwatch — Injection molding process settings — Injection molding process settings

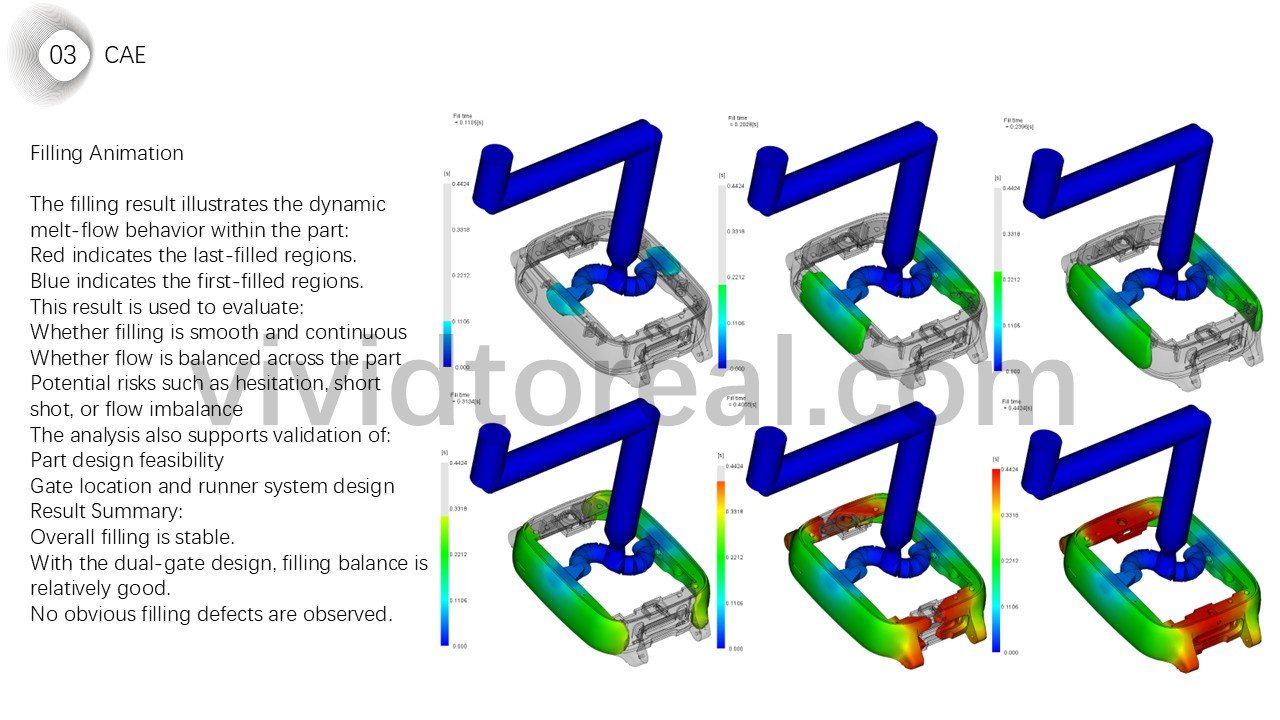

Smartwatch — Sequential filling patterns — Sequential filling patterns

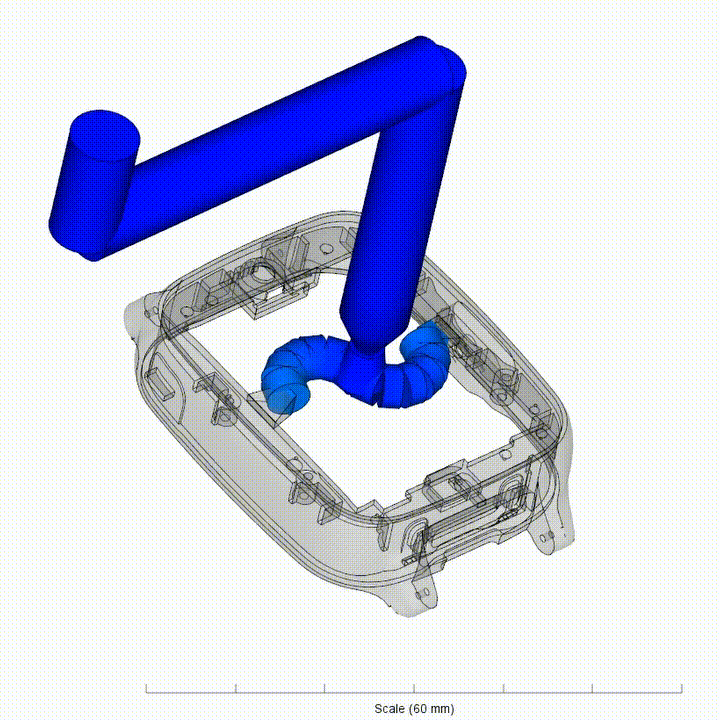

Smartwatch — Animated mold filling sequence — Animated mold filling sequence

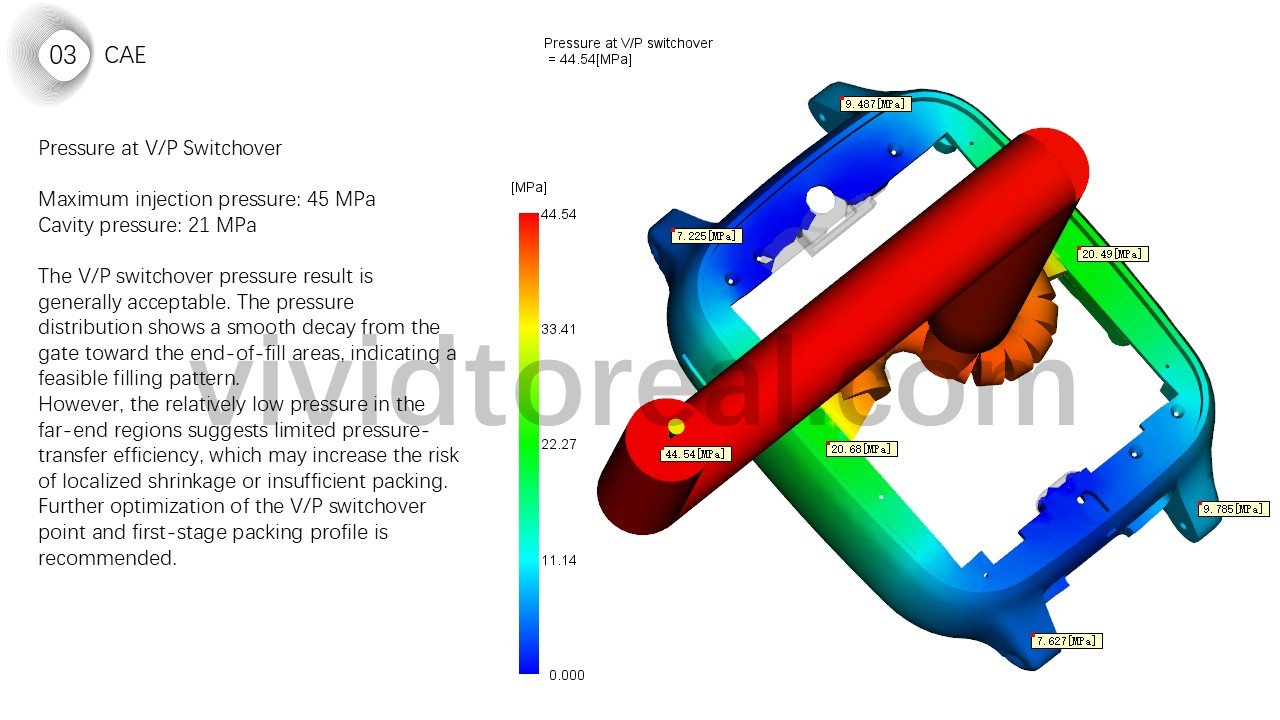

Smartwatch — Pressure at switchover — Pressure at switchover

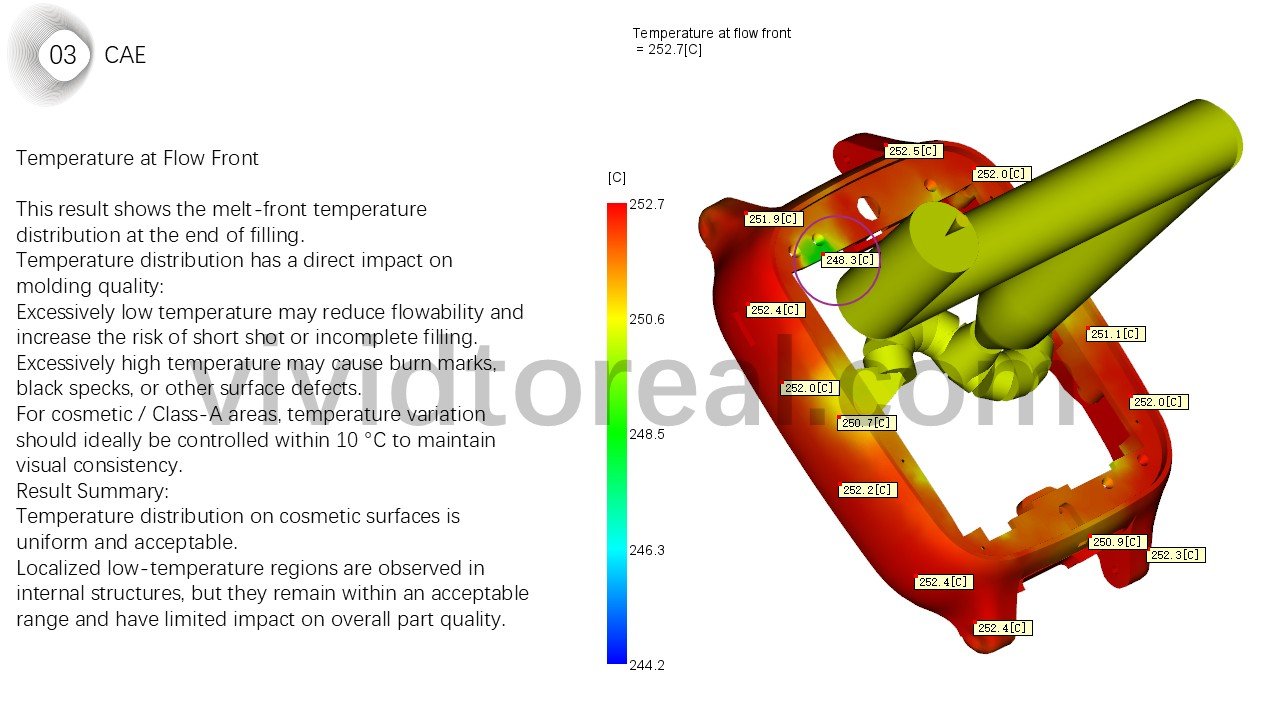

Smartwatch — Flow-front temperature distribution — Flow-front temperature distribution

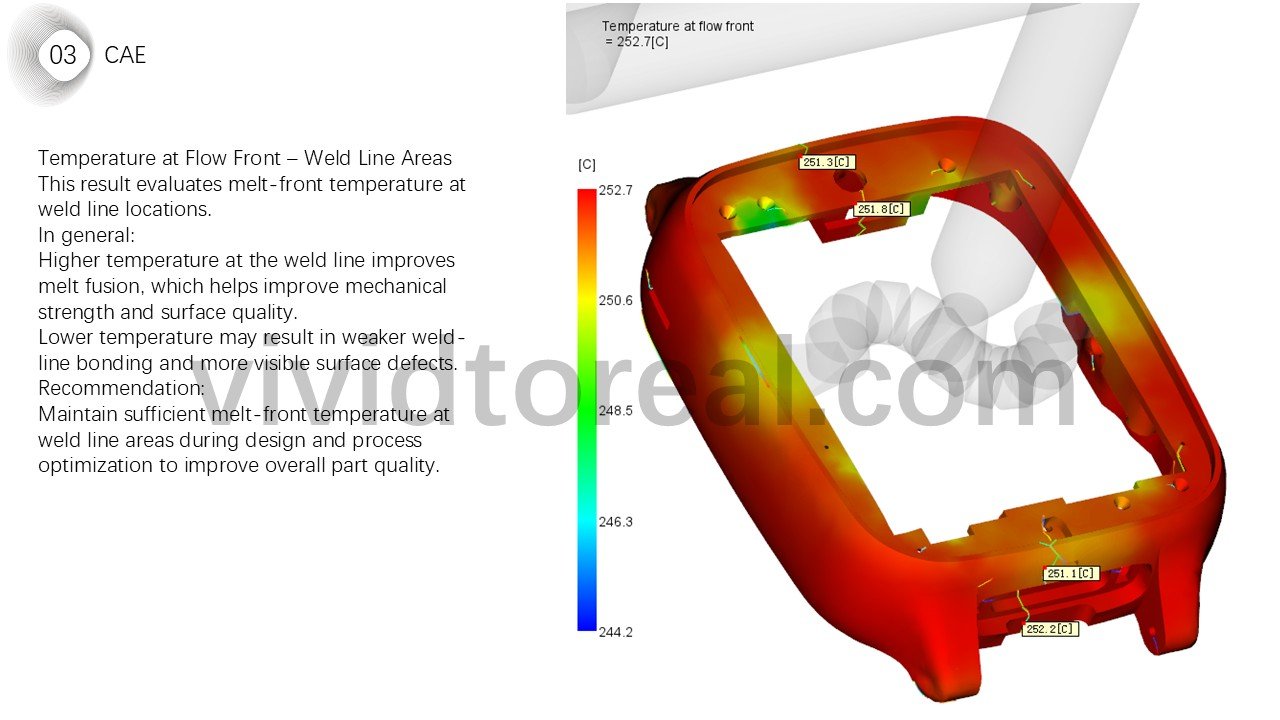

Smartwatch — Temperature at weld-line areas — Temperature at weld-line areas

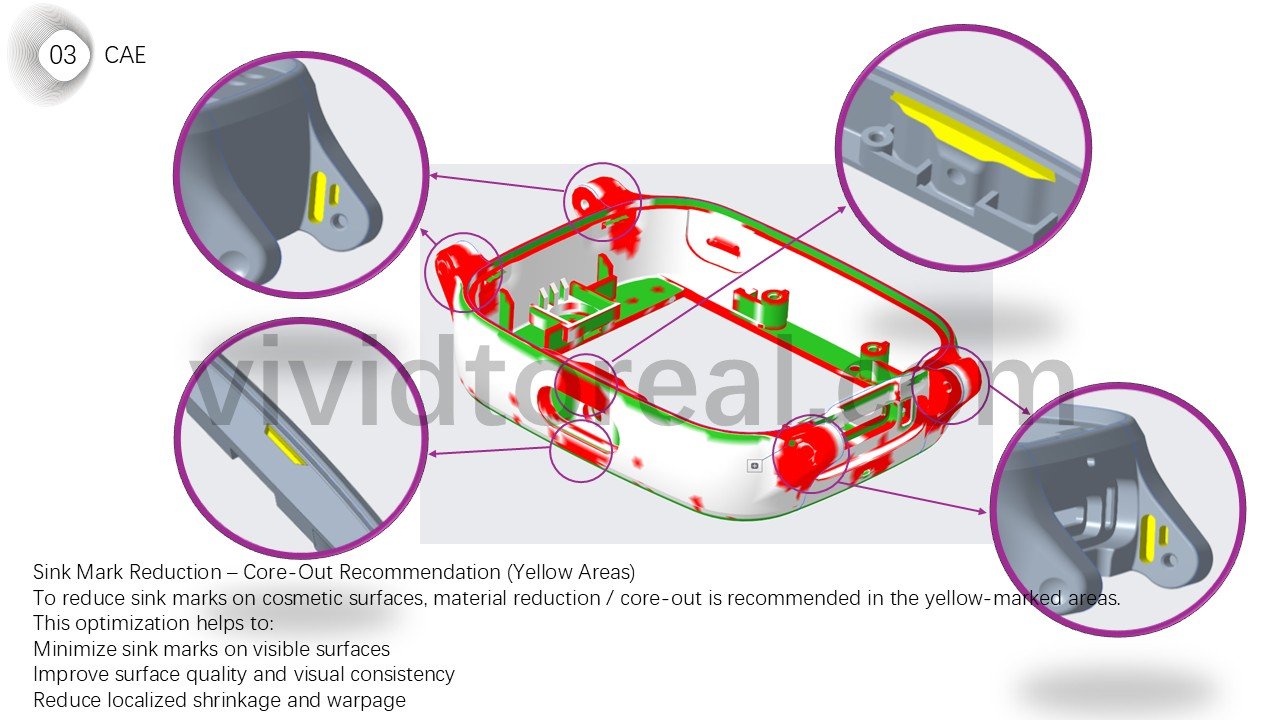

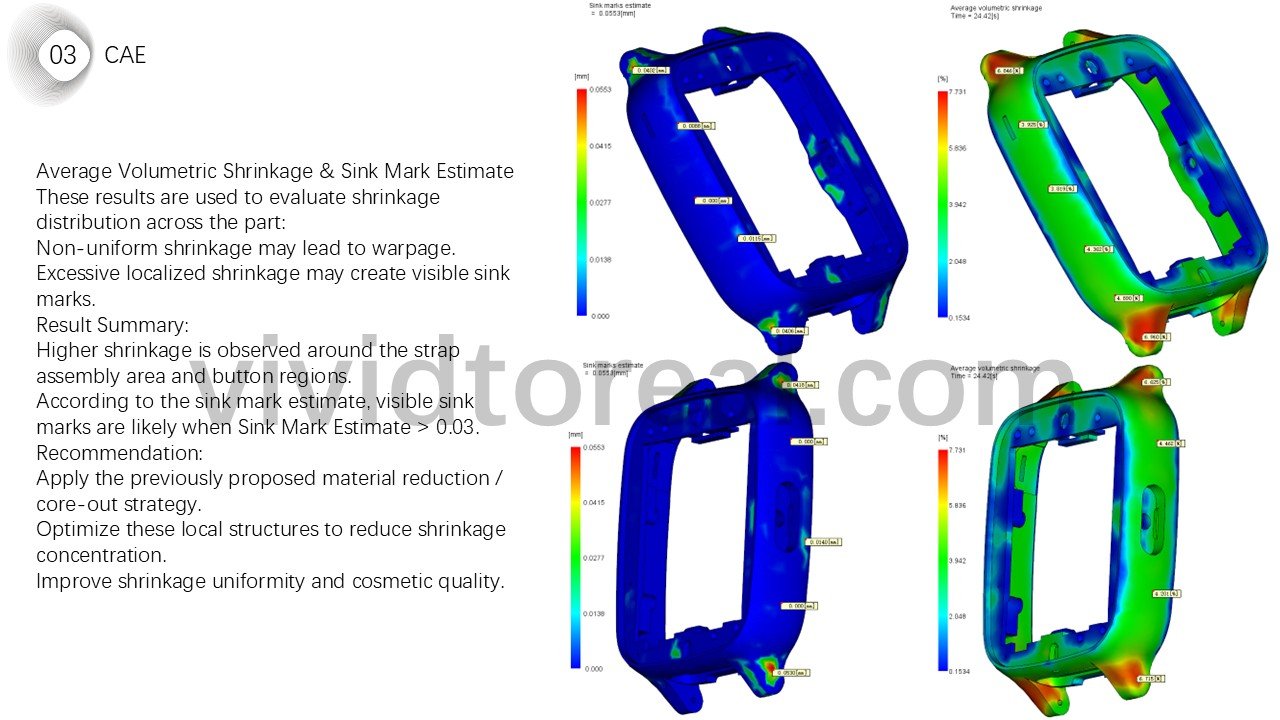

Smartwatch — Volumetric shrinkage and sink estimates — Volumetric shrinkage and sink estimates

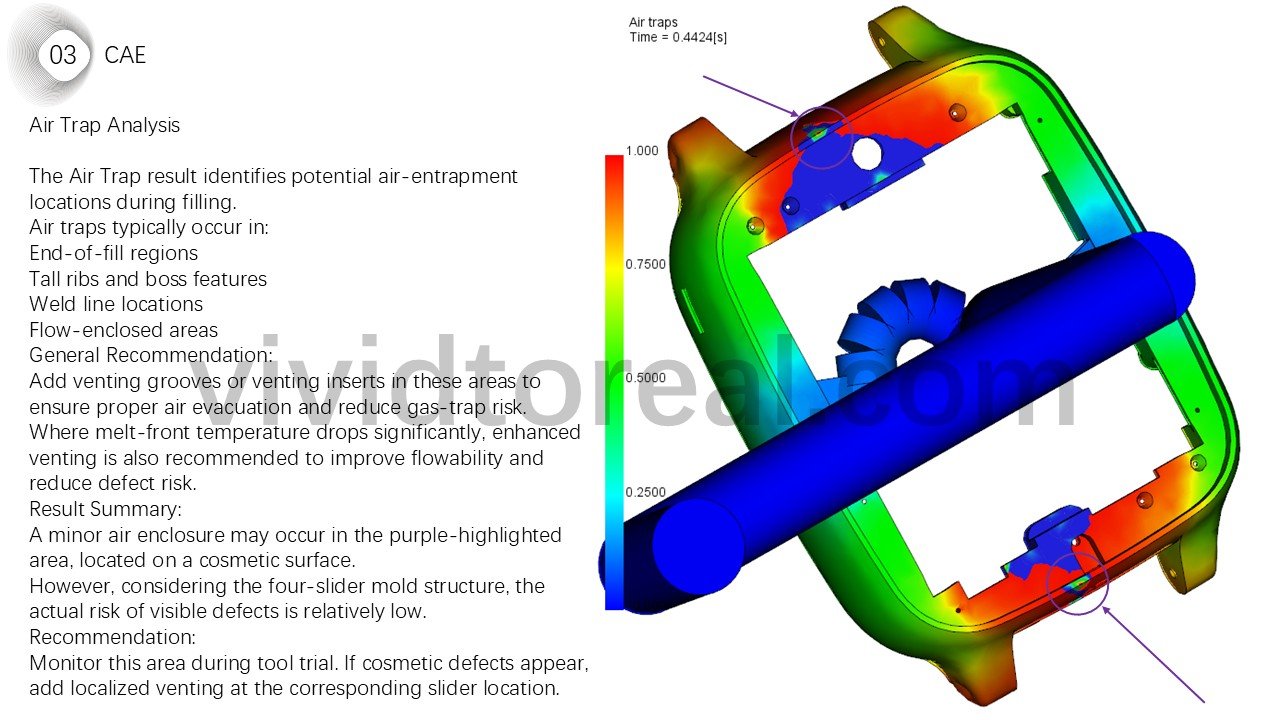

Smartwatch — Air trap locations — Air trap locations

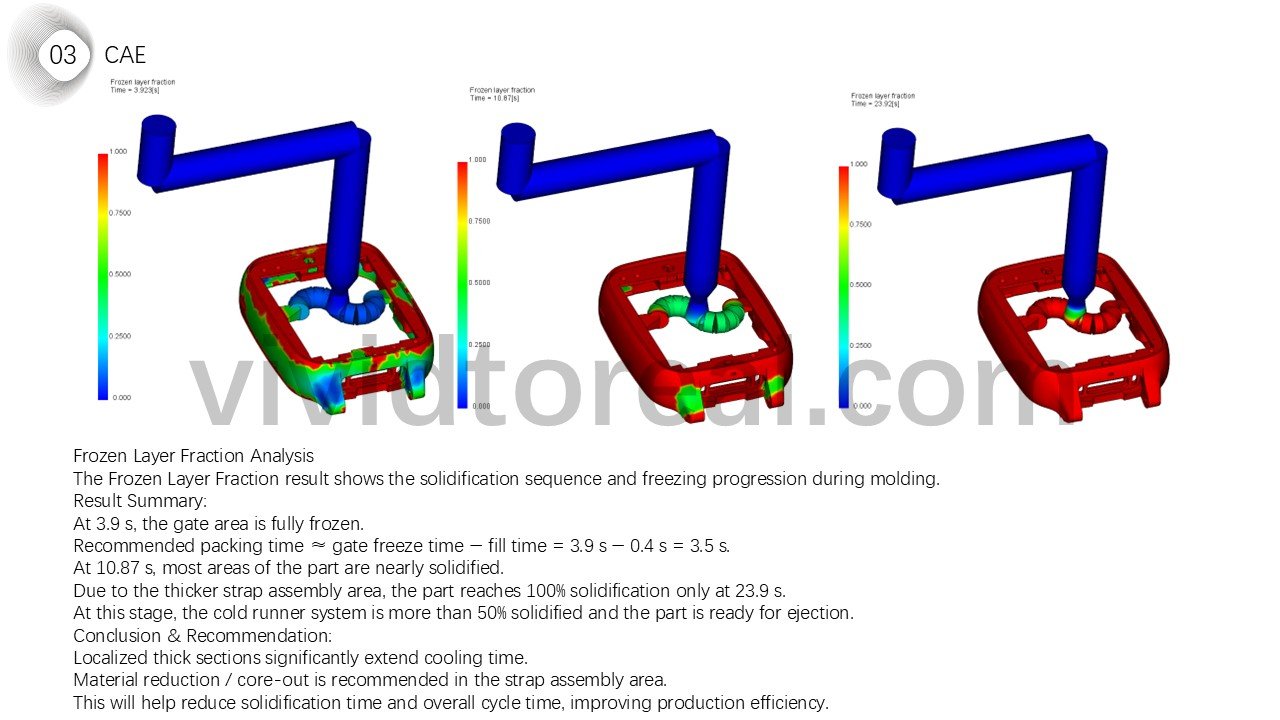

Smartwatch — Frame and runner simulation comparison — Frame and runner simulation comparison

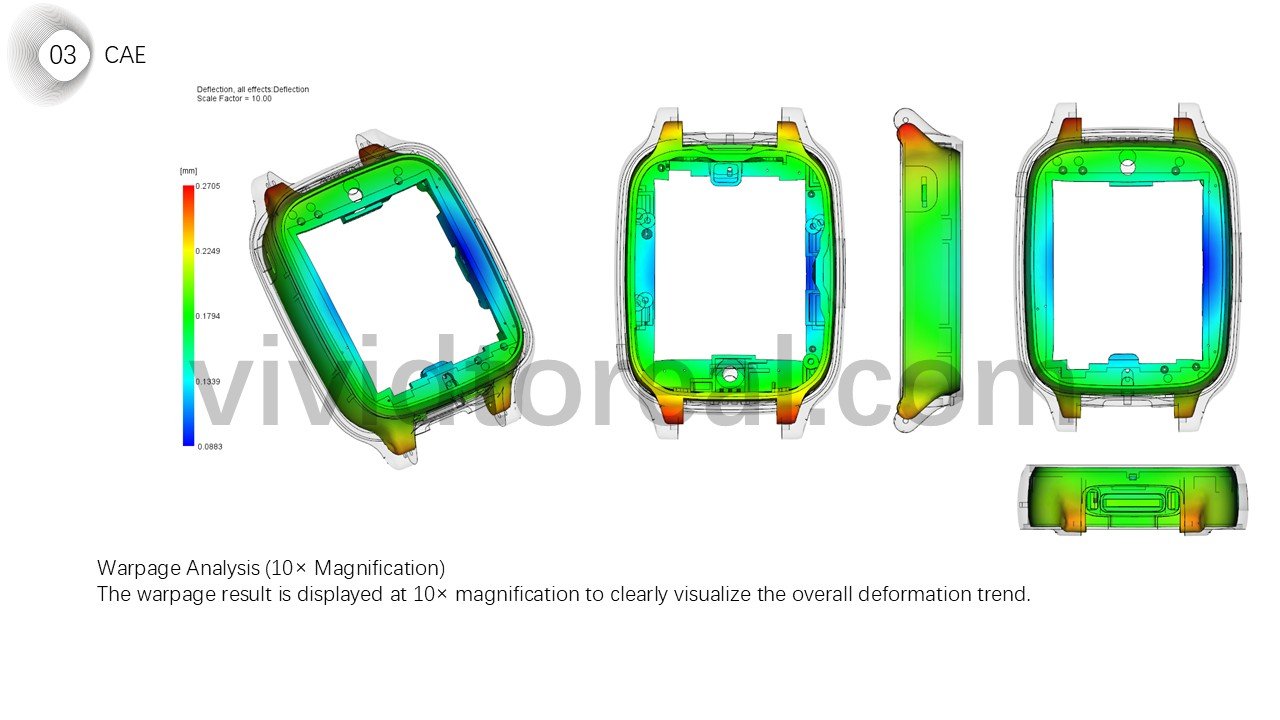

Smartwatch — Predicted midframe displacement — Predicted midframe displacement

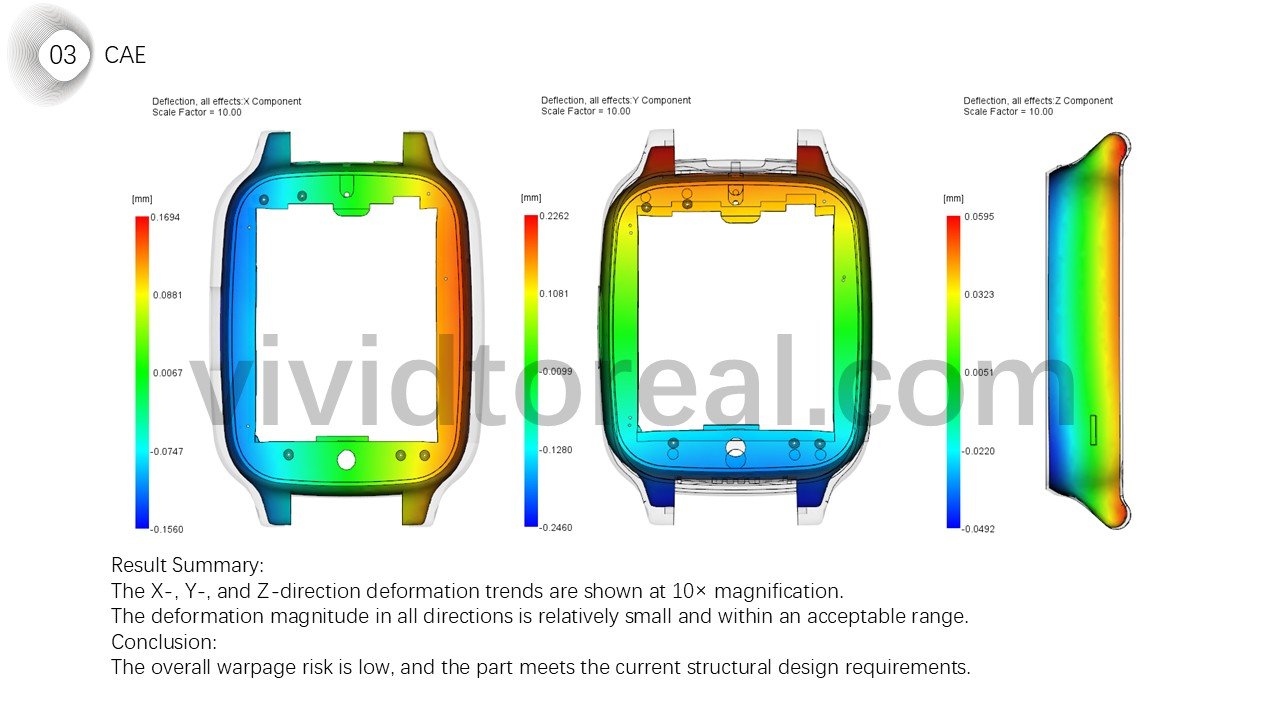

Smartwatch — Deflection in three axes — Deflection in three axes

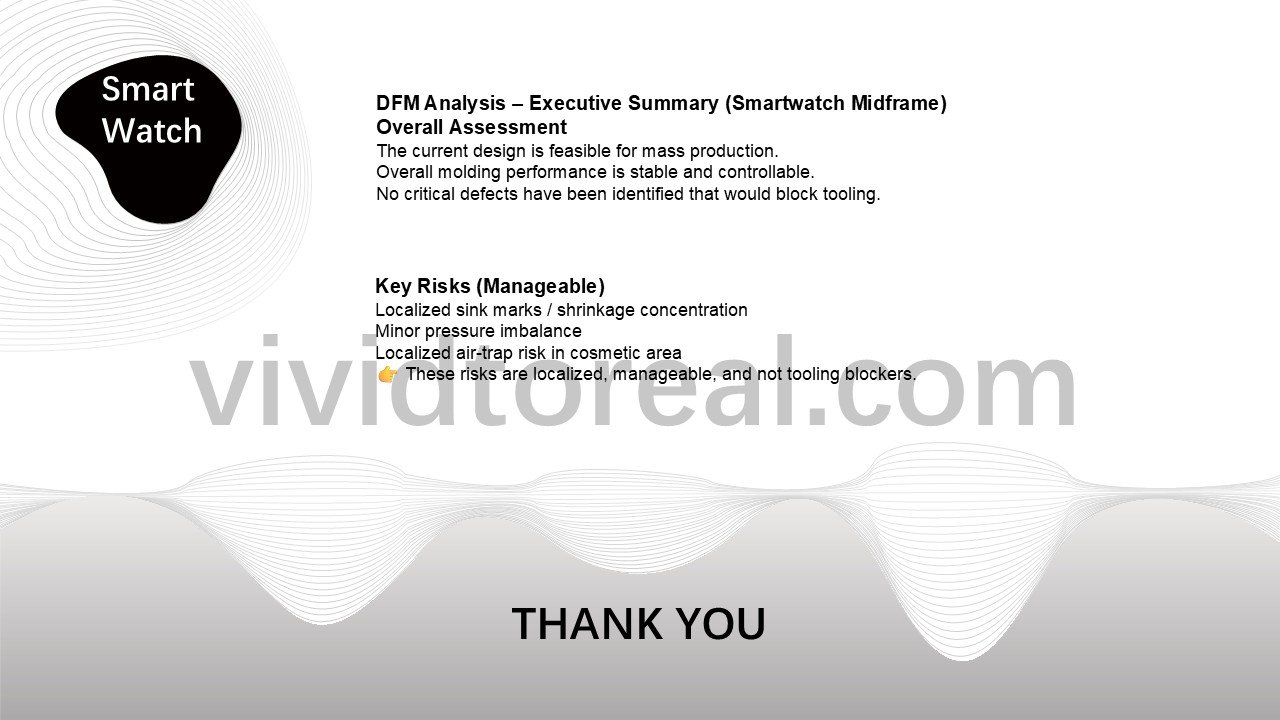

Smartwatch — Midframe tooling assessment — Midframe tooling assessment
