Study 04 / Thermal packaging
RF beauty device mechanical design

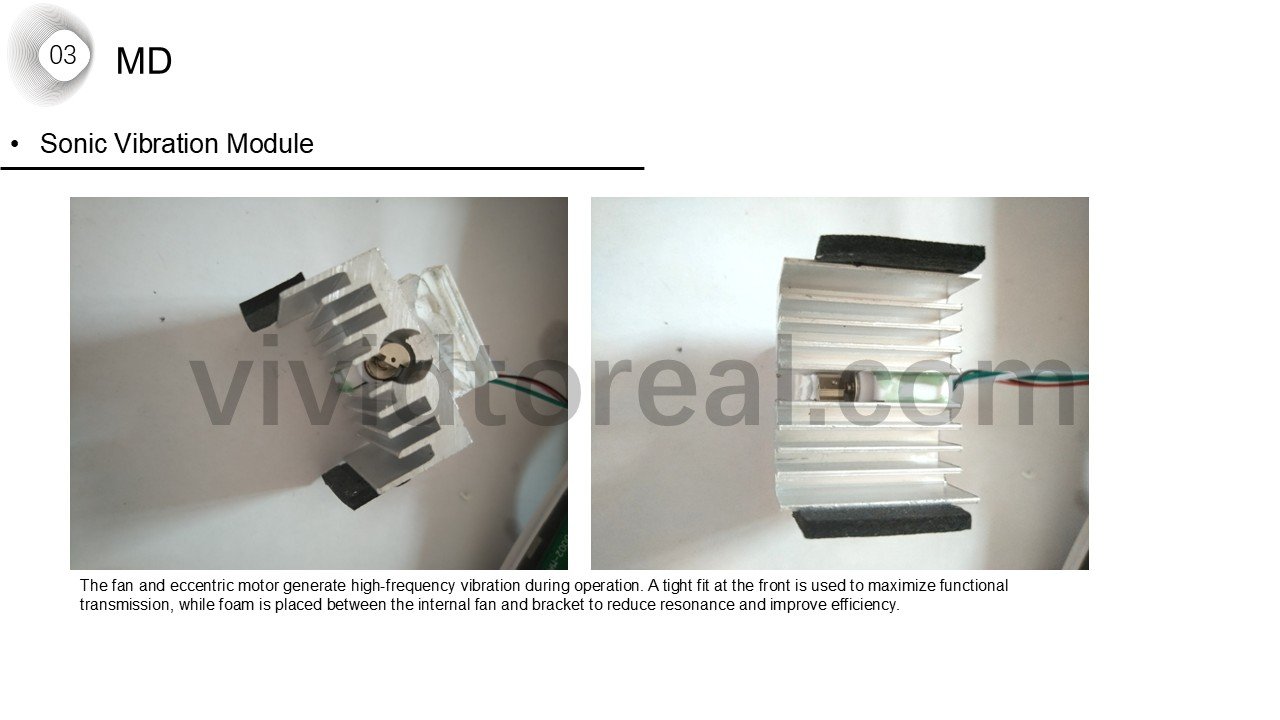

A heating and cooling head shares a handheld enclosure with the battery, controls and vibration module. The drawings show how those parts mount and where ventilation fits into the housing.
Owen Wen · Past engineering project · Anonymized
Project overview21 drawings
Drawing index

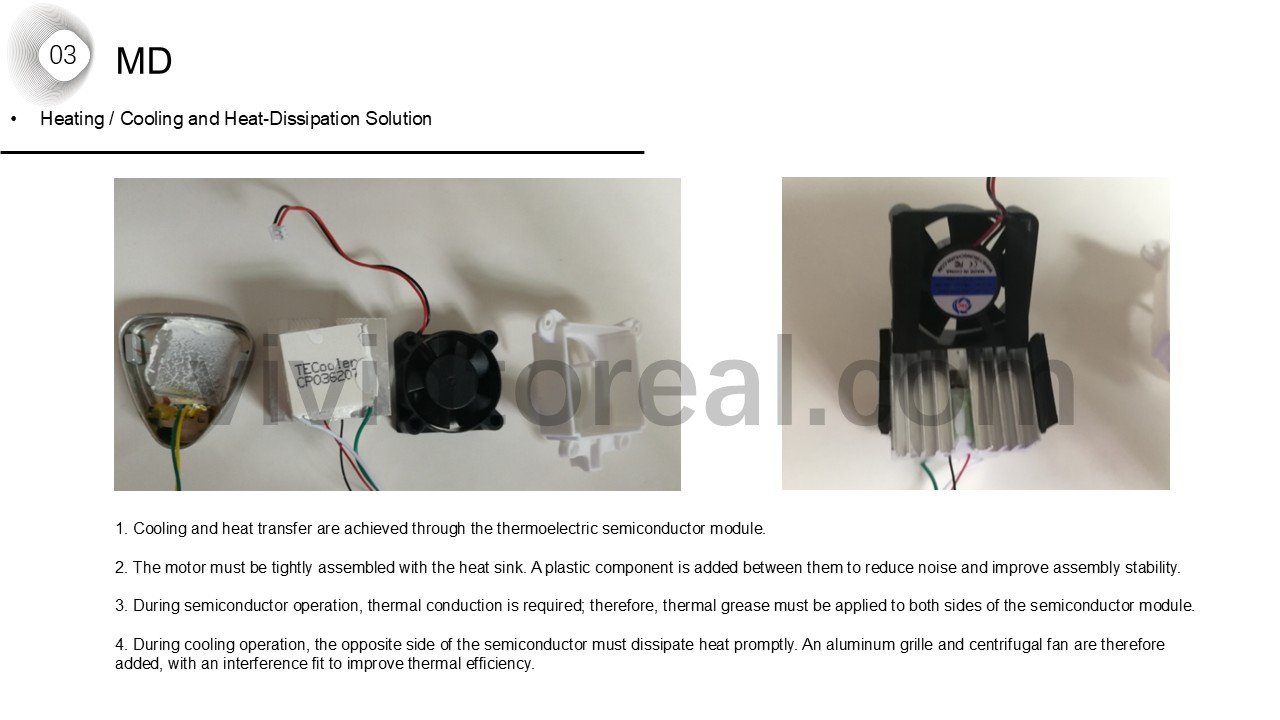

How is heat managed inside the handle?

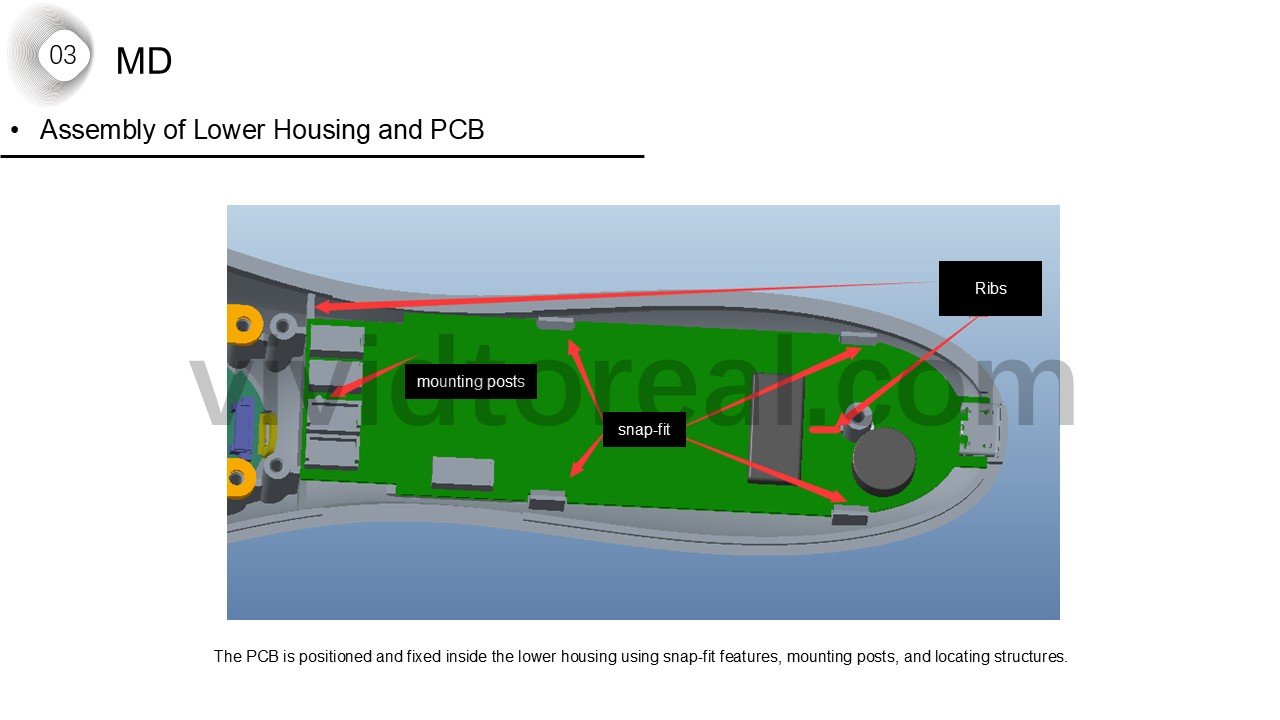

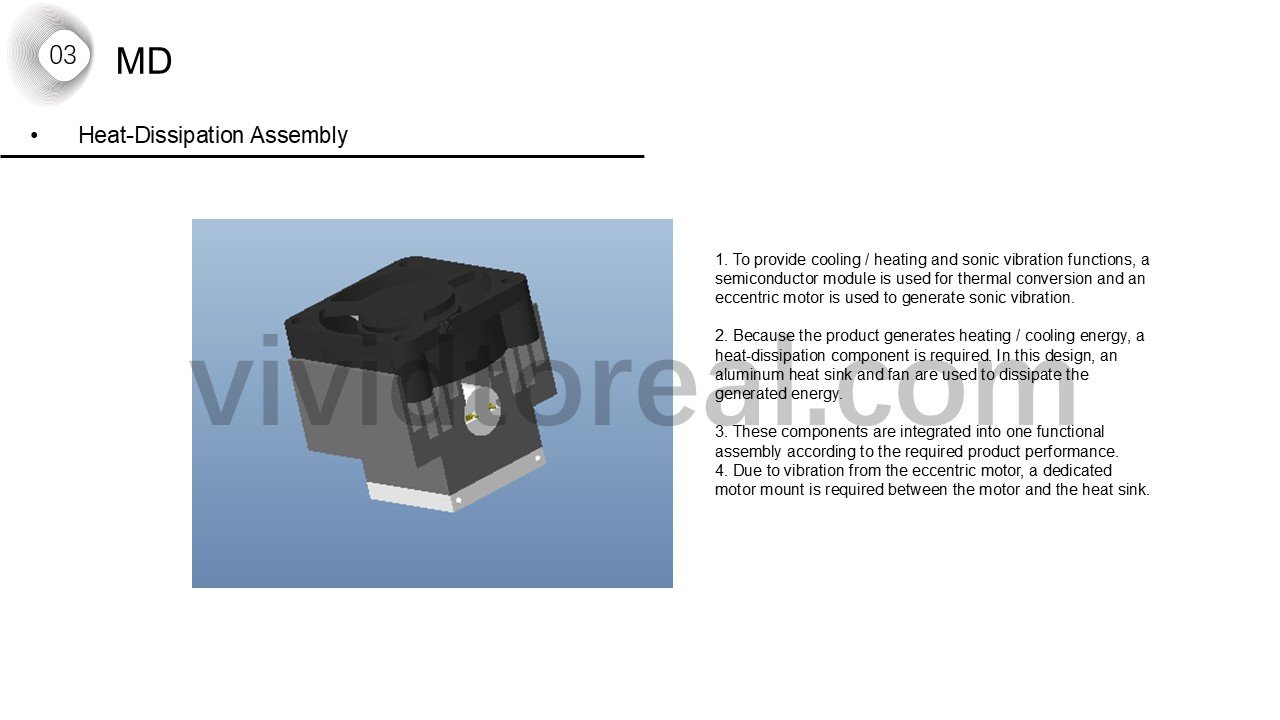

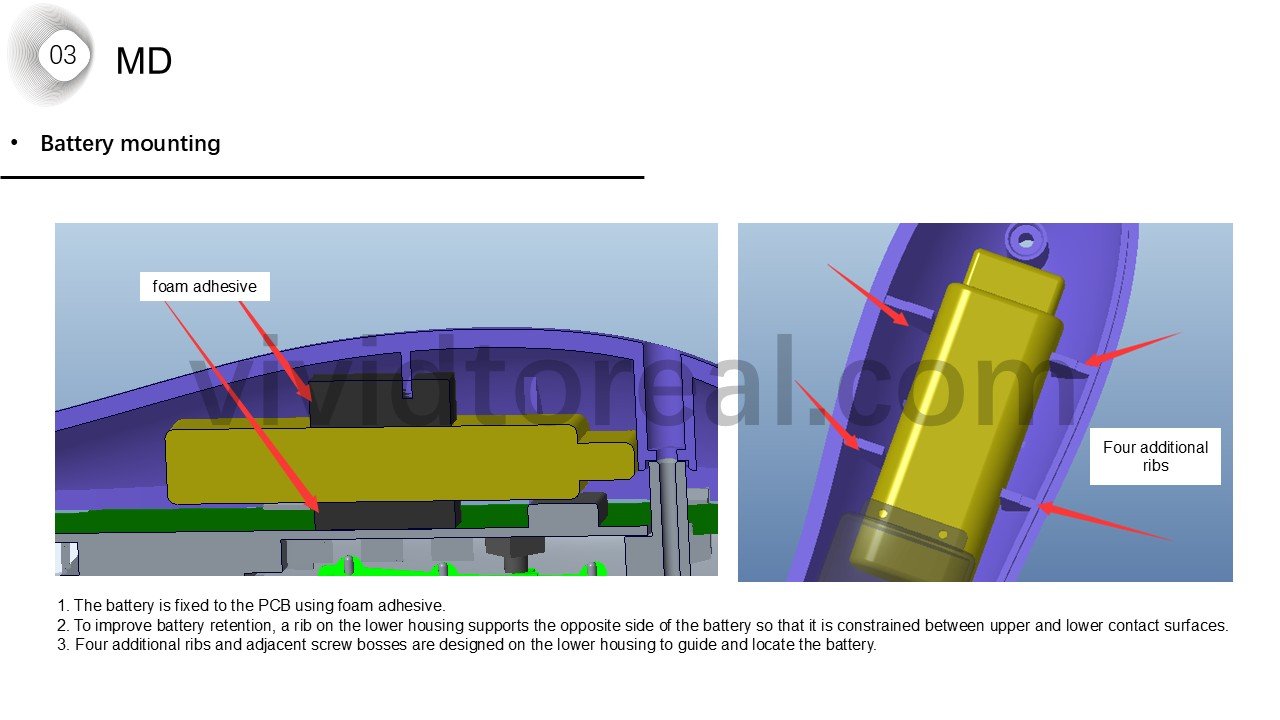

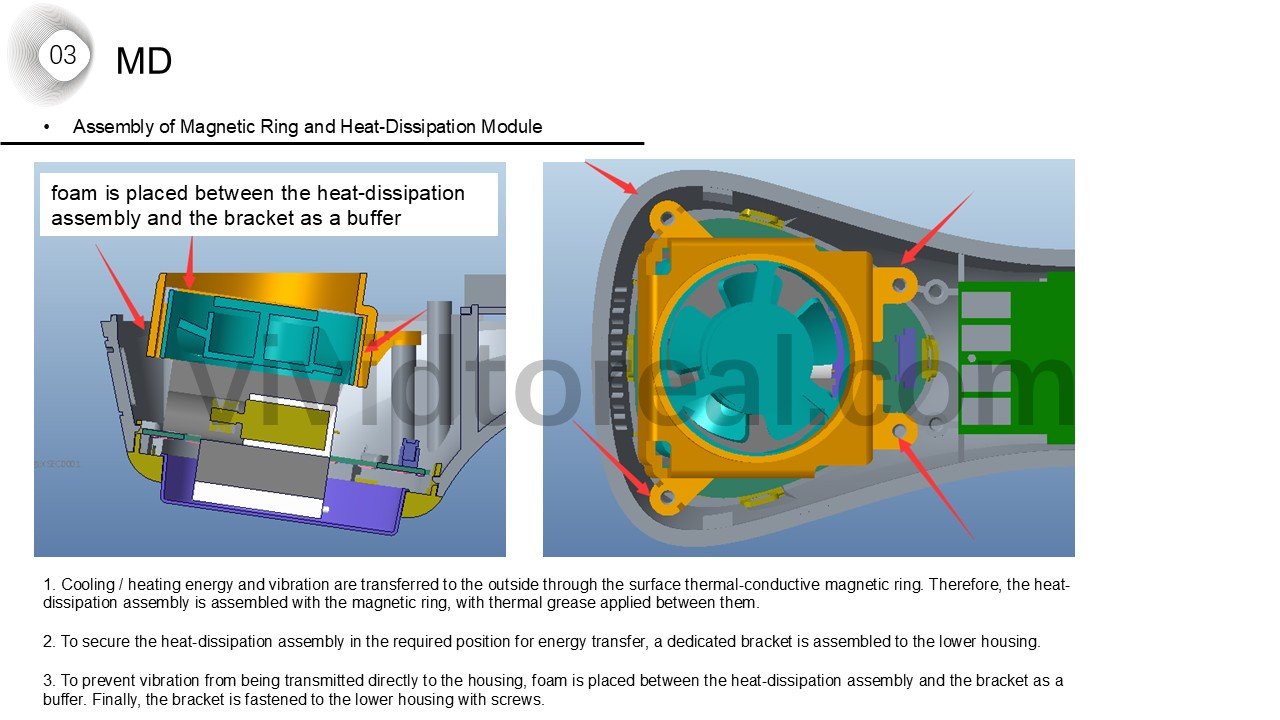

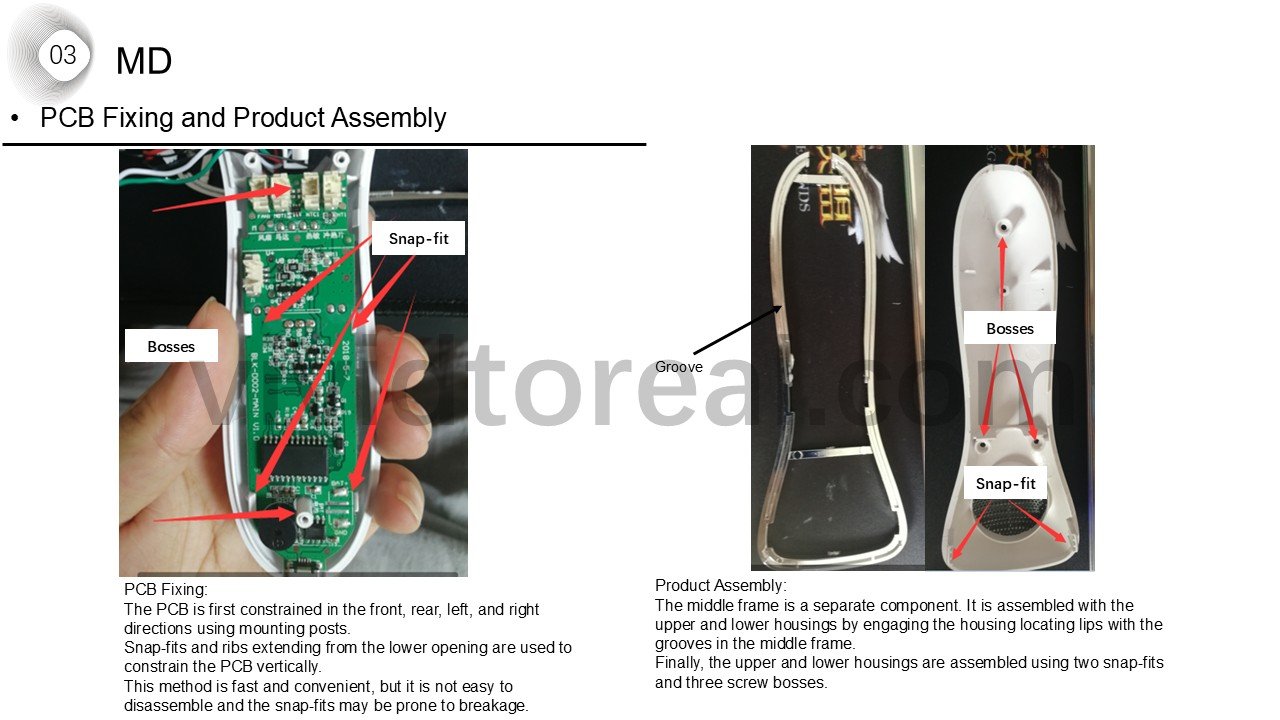

The thermal module sits behind the treatment head. The drawings trace its connection to the magnetic ring and show the ventilation features, battery mount and circuit board in the same enclosure.

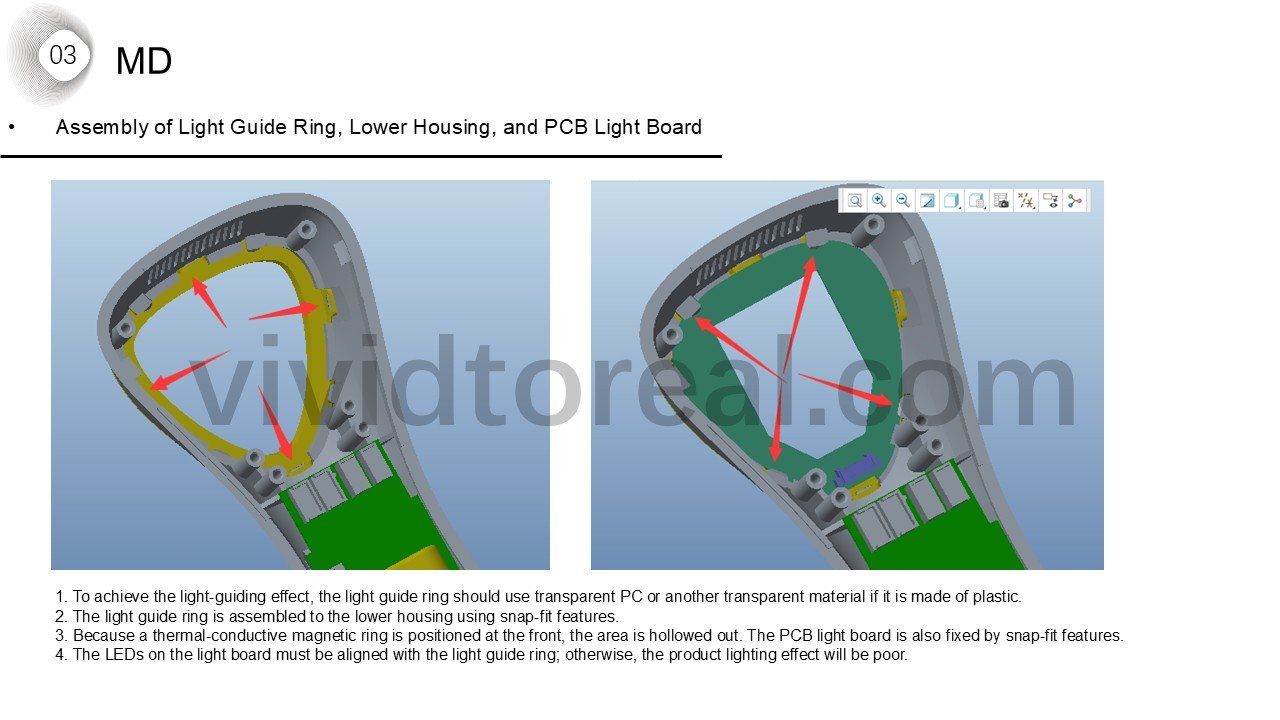

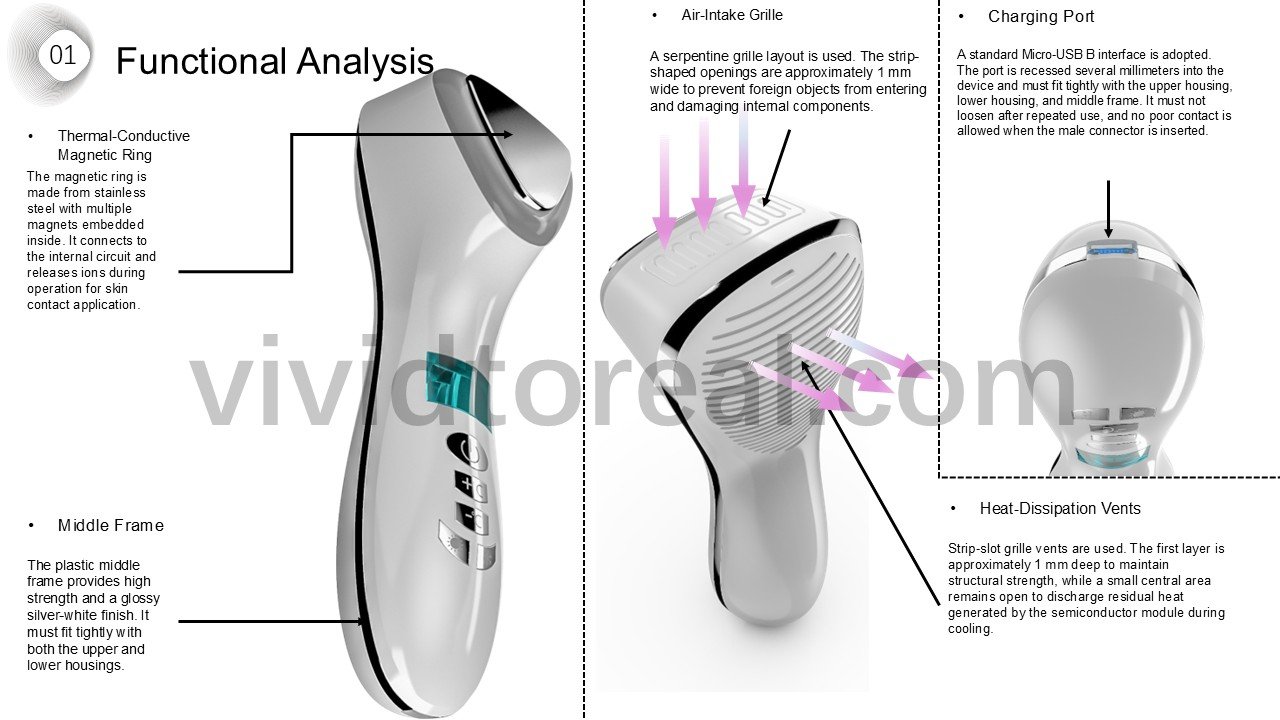

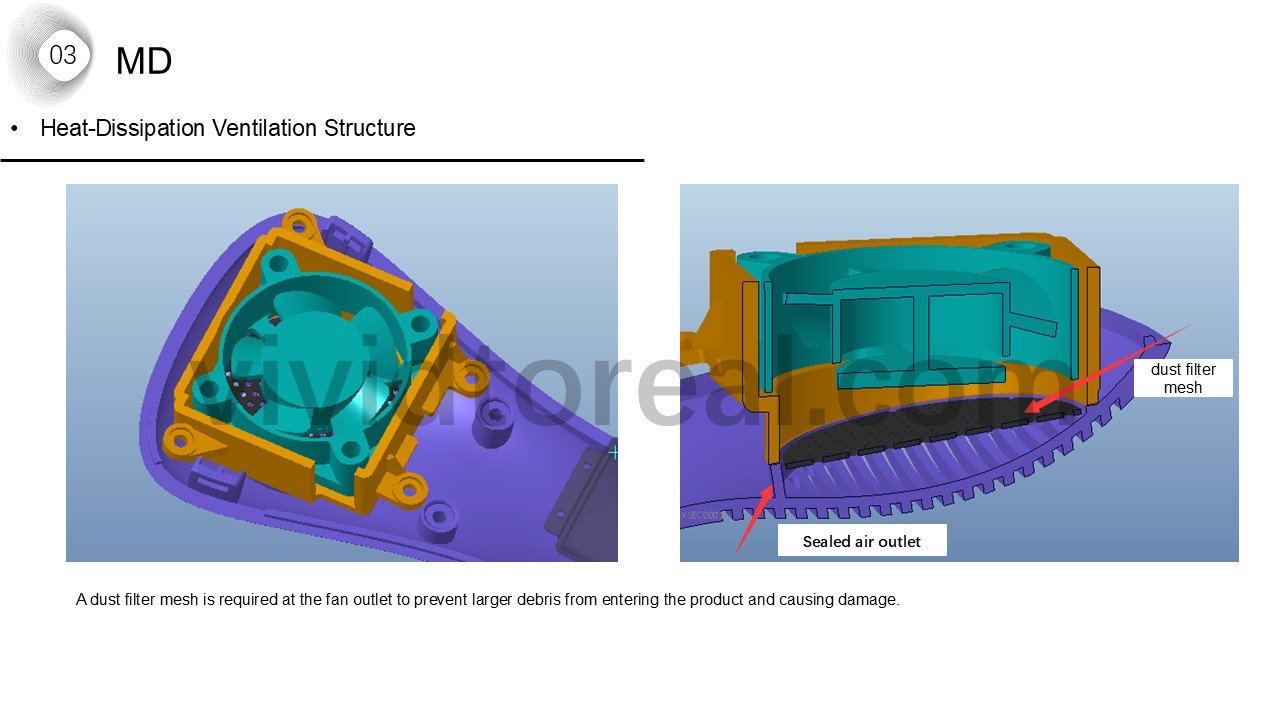

See drawings Magnetic ring and thermal module · Heat dissipation vents

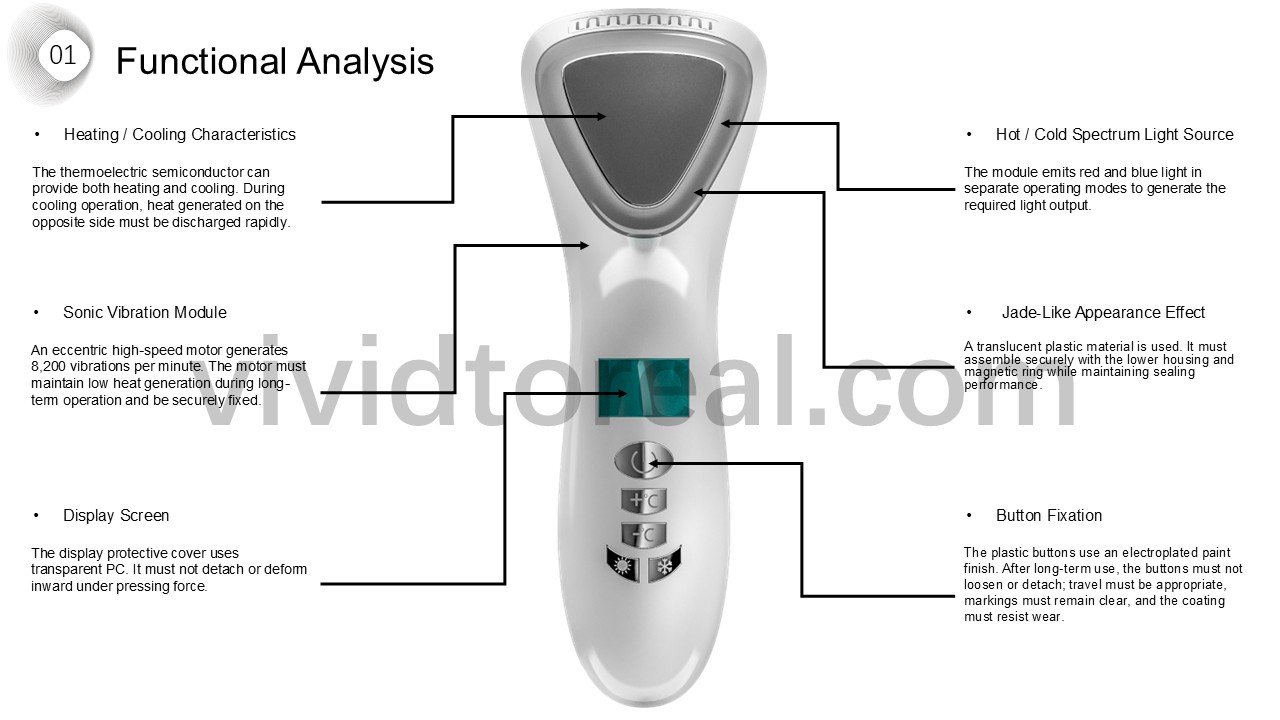

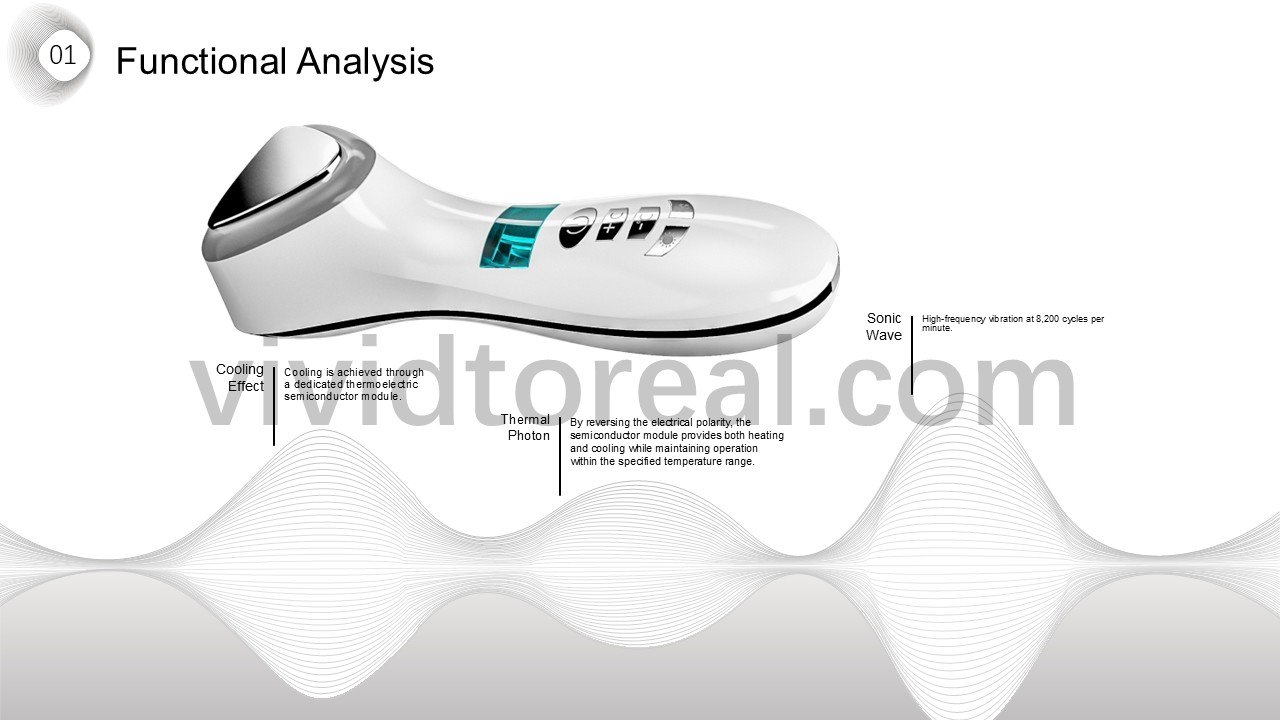

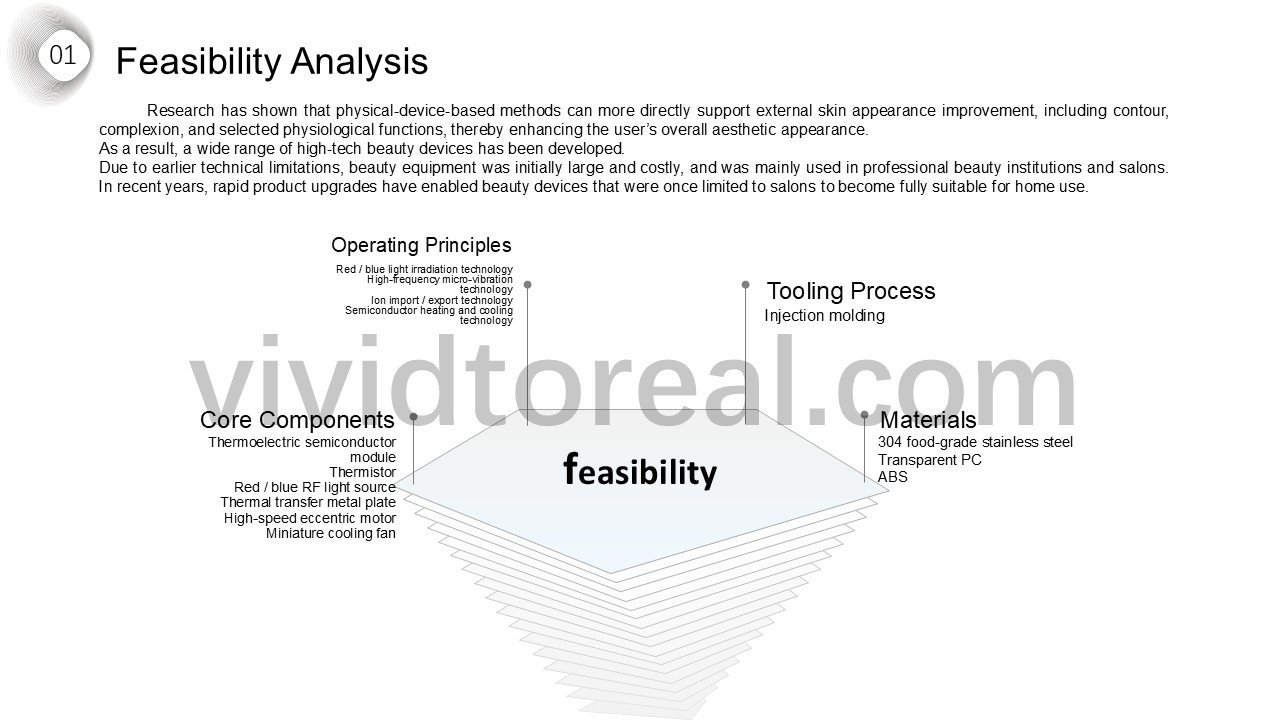

Functional Analysis

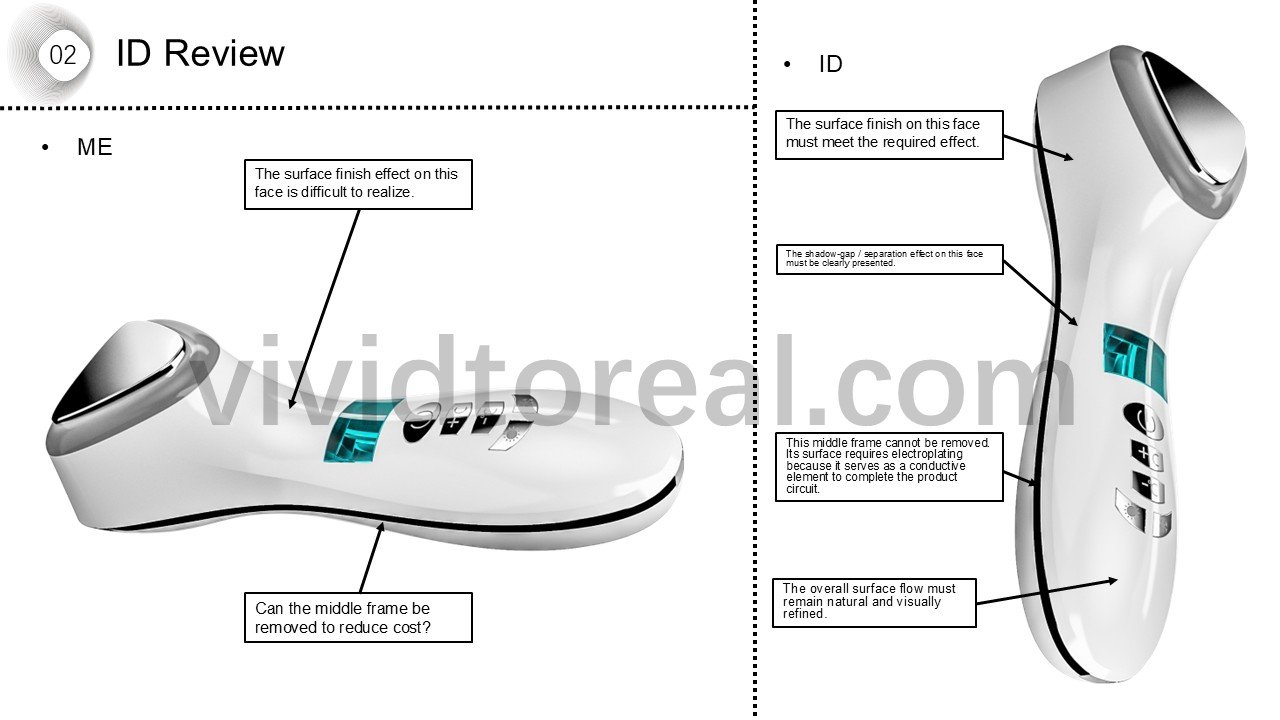

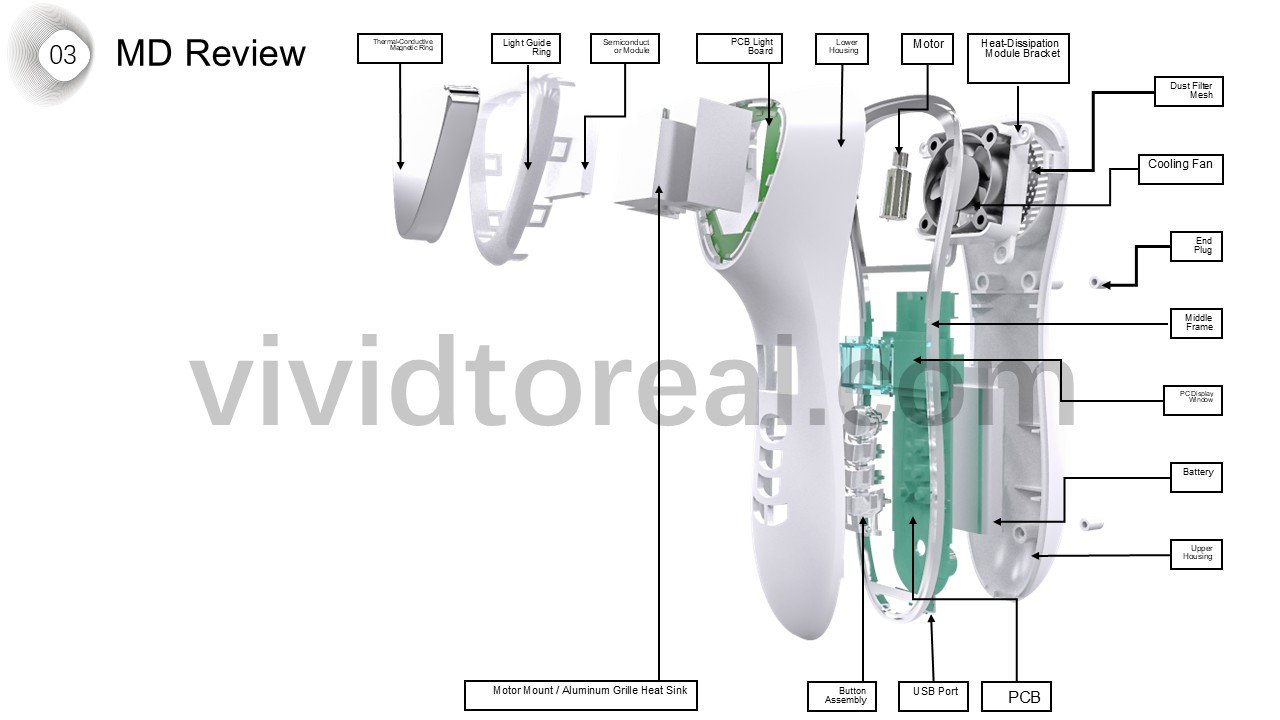

Industrial design review

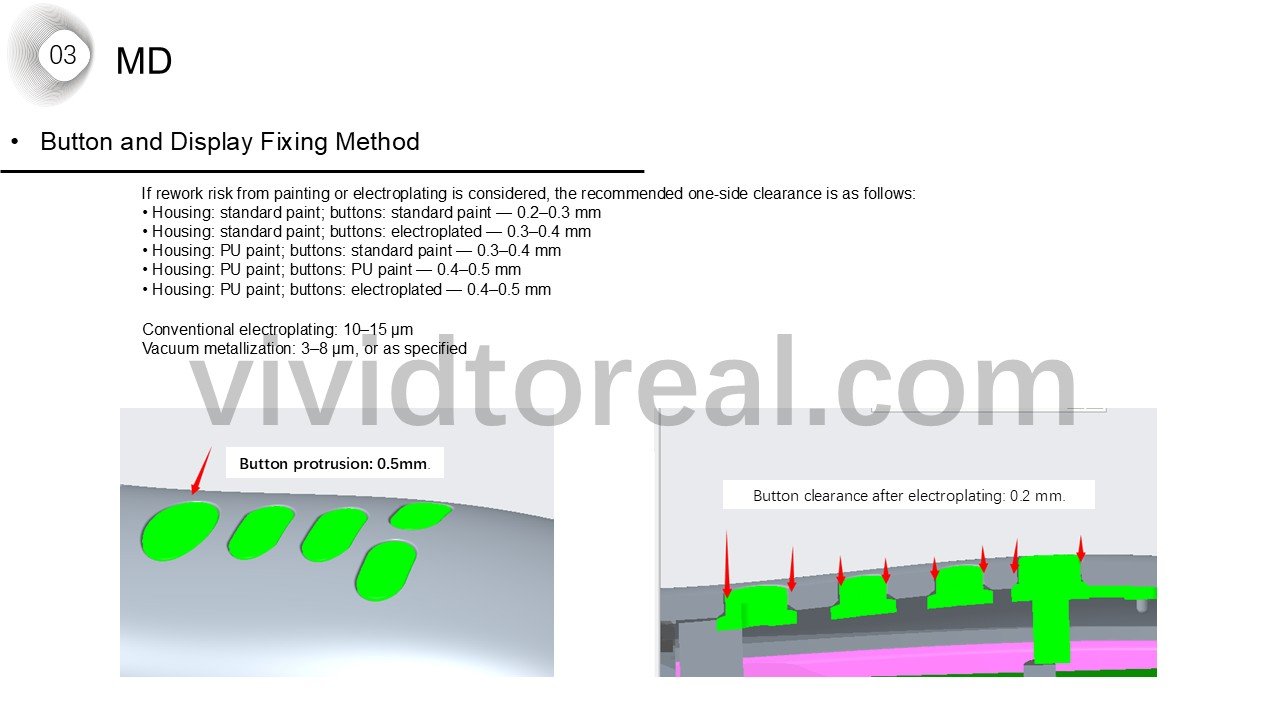

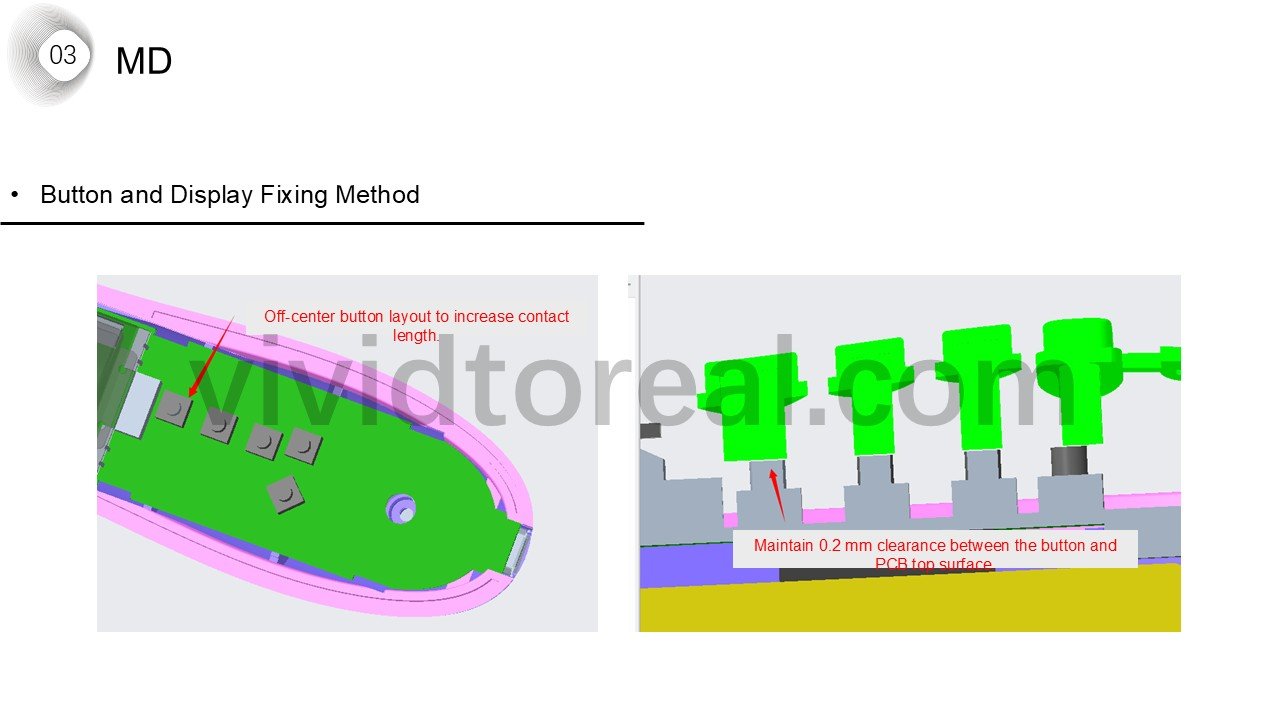

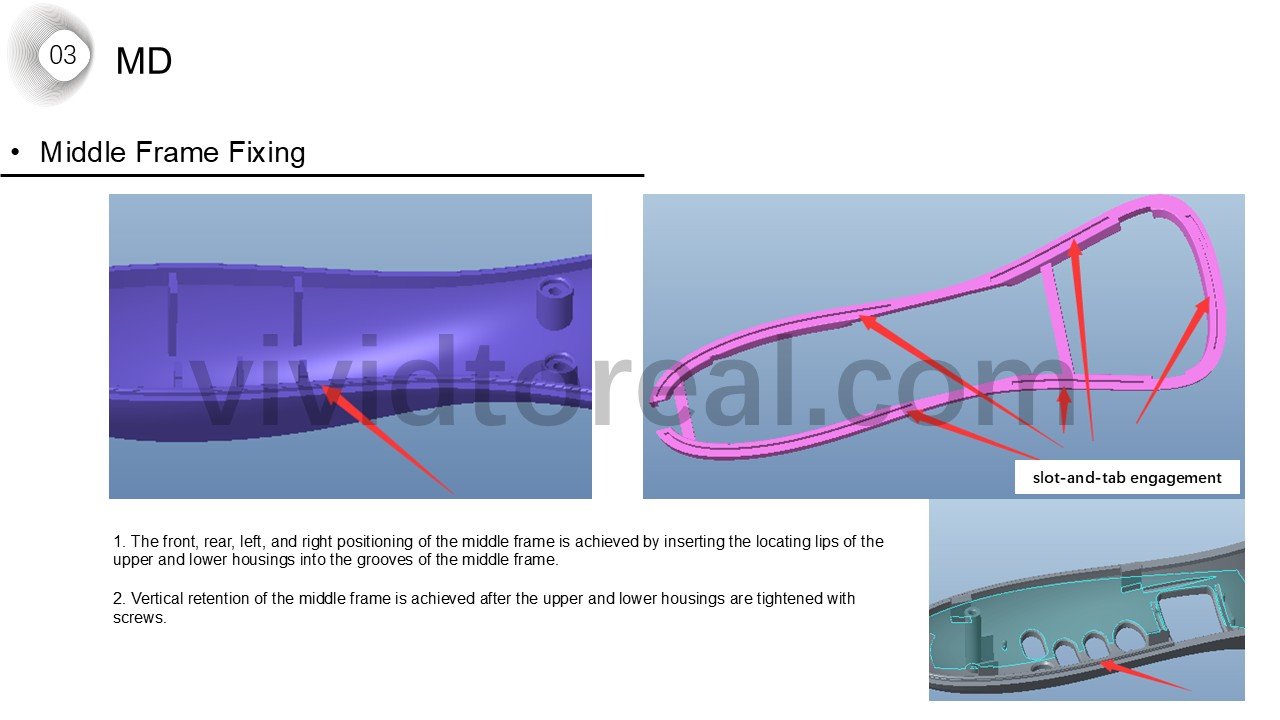

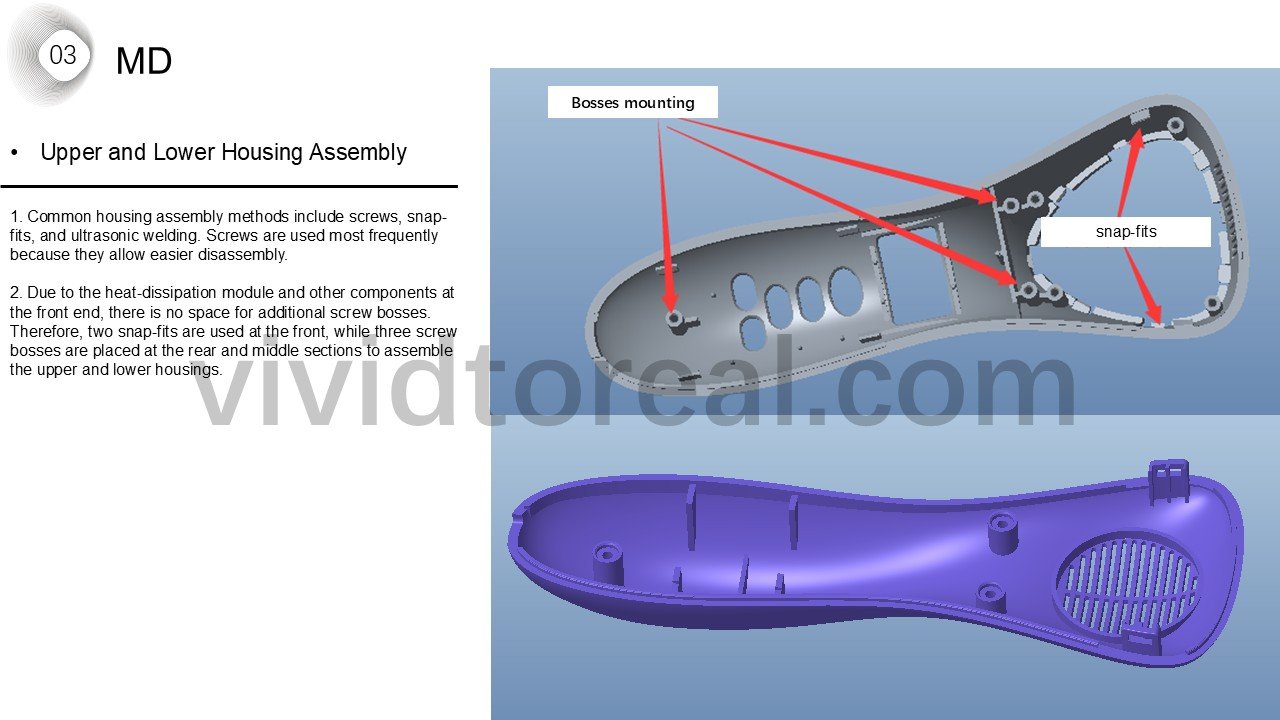

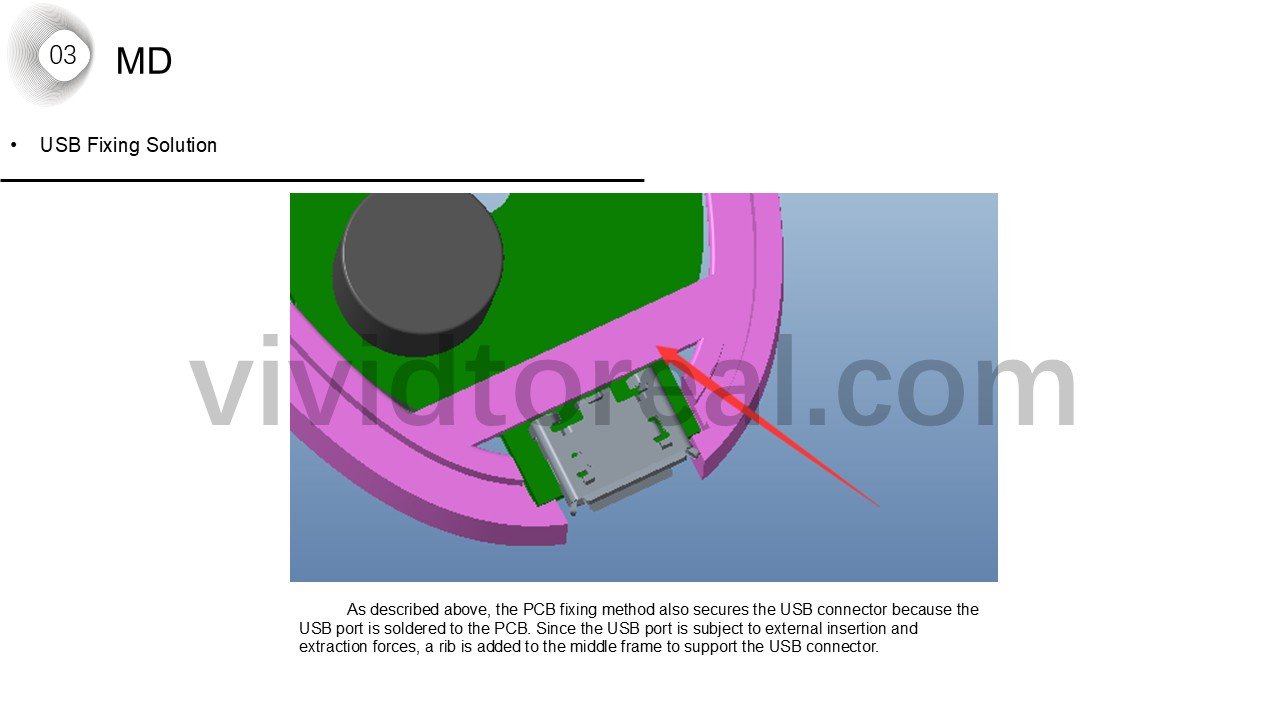

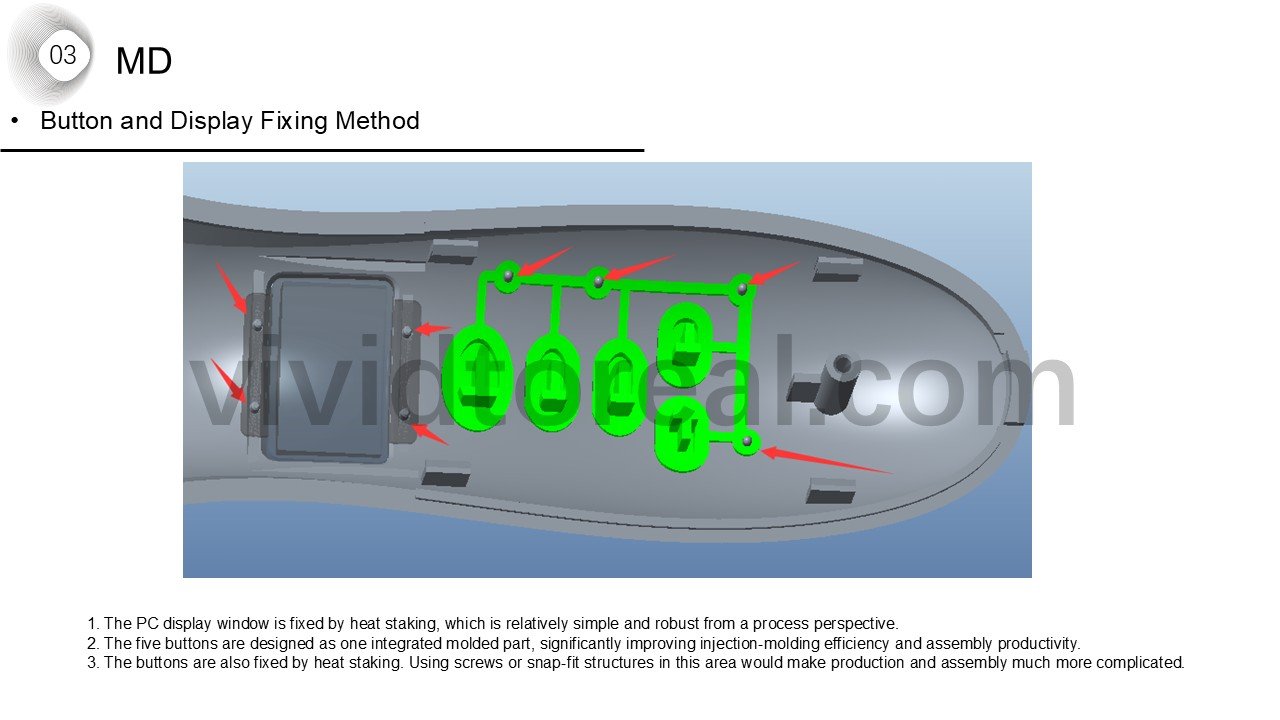

Structural Design Details
